Flocculation basin inclusion or exclusion type water treatment apparatus using dissolved air flotation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Issued Date -
N/A
app pub date -
Apr 6, 2015
filing date -
Apr 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

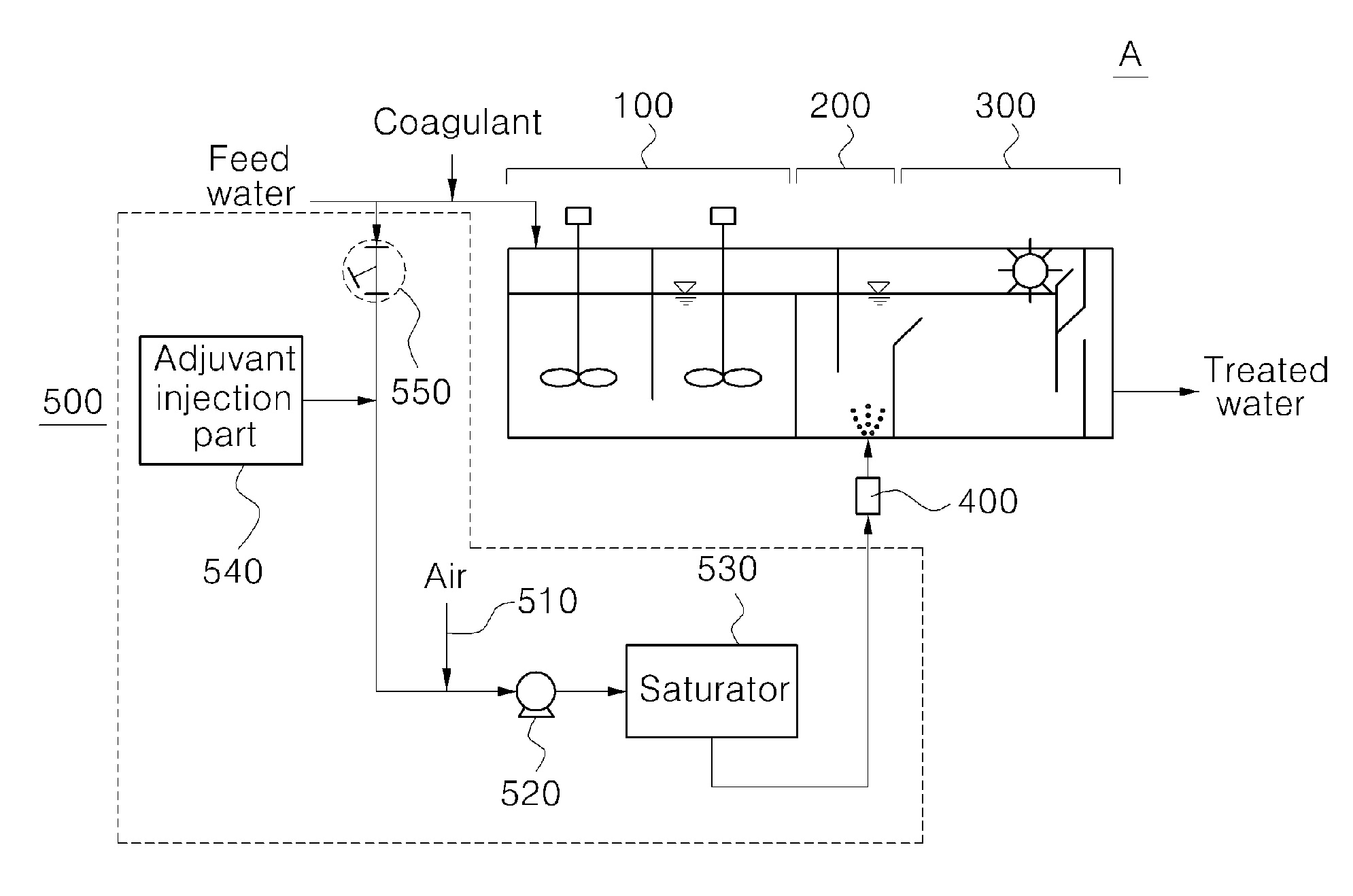

Disclosed herein is a flocculation basin inclusion ion type water treatment apparatus using dissolved air floatation which includes: a flocculation basin which forms flocs by mixing a coagulant inserted into feed water and grows up the flocs; a contact zone to which fine bubbles are induced through a nozzle disposed at a lower part; and a separation zone which removes the flocs when the fine bubbles are attached to the flocs and the flocs float on the surface of water, the flocculation basin inclusion type water treatment apparatus including: a fine bubble forming part configured to separate a portion of the feed water at an upstream side of the flocculation basin by piping, configured to form saturated water using the separated portion of the feed water and configured to supply the saturated water to the nozzle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B03D Class
- 80 Applications Filed
- 64 Patents Issued To-Date
- 80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B03D Class
- 28.57 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
