Method and device for bio impedance measurement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Grant Date -
May 8, 2014
app pub date -
Nov 5, 2013
filing date -
Nov 5, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

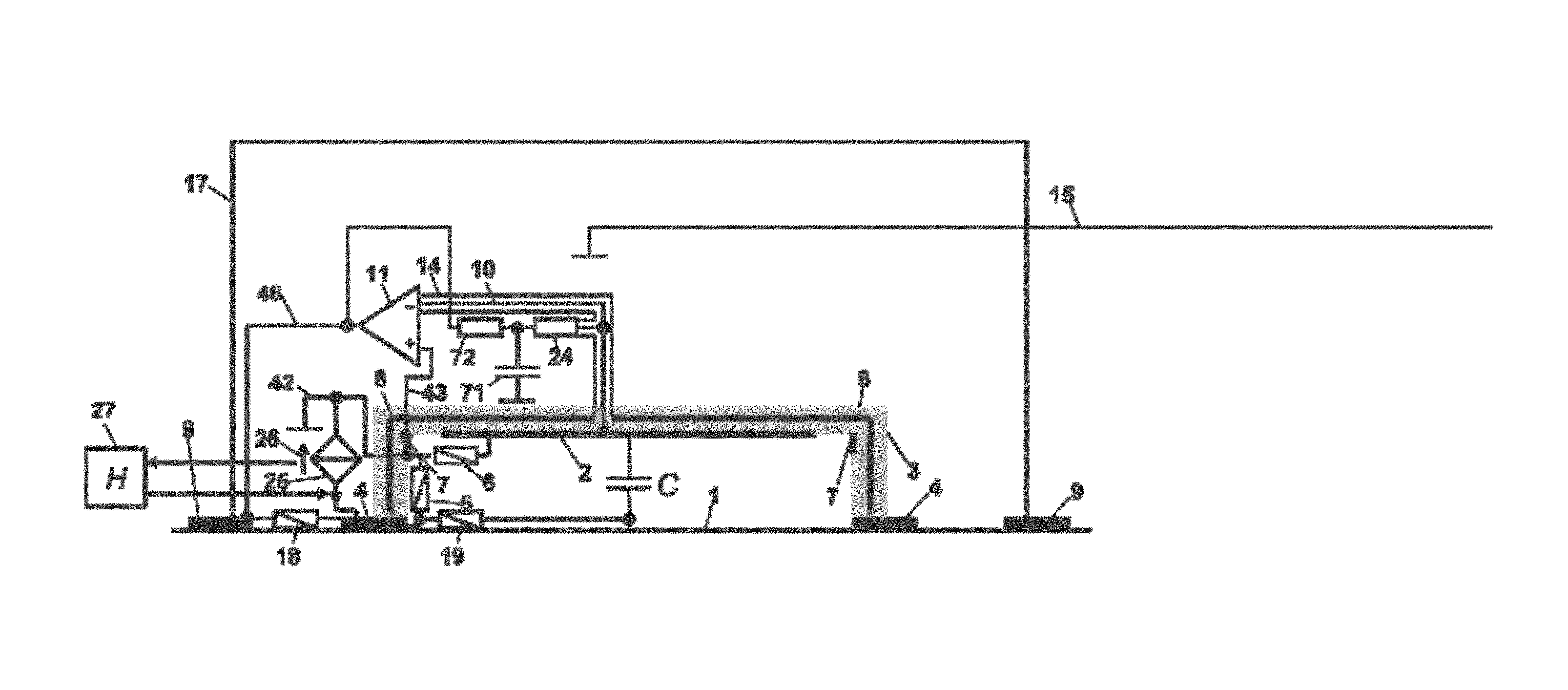

Method for bio impedance measurement on a skin surface of a living body, using a bio impedance measurement device having a sensing electrode and a pilot electrode, includes the steps of placing the sensing electrode and pilot electrode on the surface of the body; providing a guard electrode adapted to separate the surface in at least two zones, among which a sensing zone including the sensing electrode and a current injection zone including the pilot electrode; providing a controller, electrically connected to the electrodes, adapted to control the current source; and controlling the potential of the guard electrode, at least at given stopping frequencies, in order to stop current from flowing from one zone to the other.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
