Vehicle radar diagnostic arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Issued Date -
N/A
app pub date -
Dec 21, 2012
filing date -
Dec 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

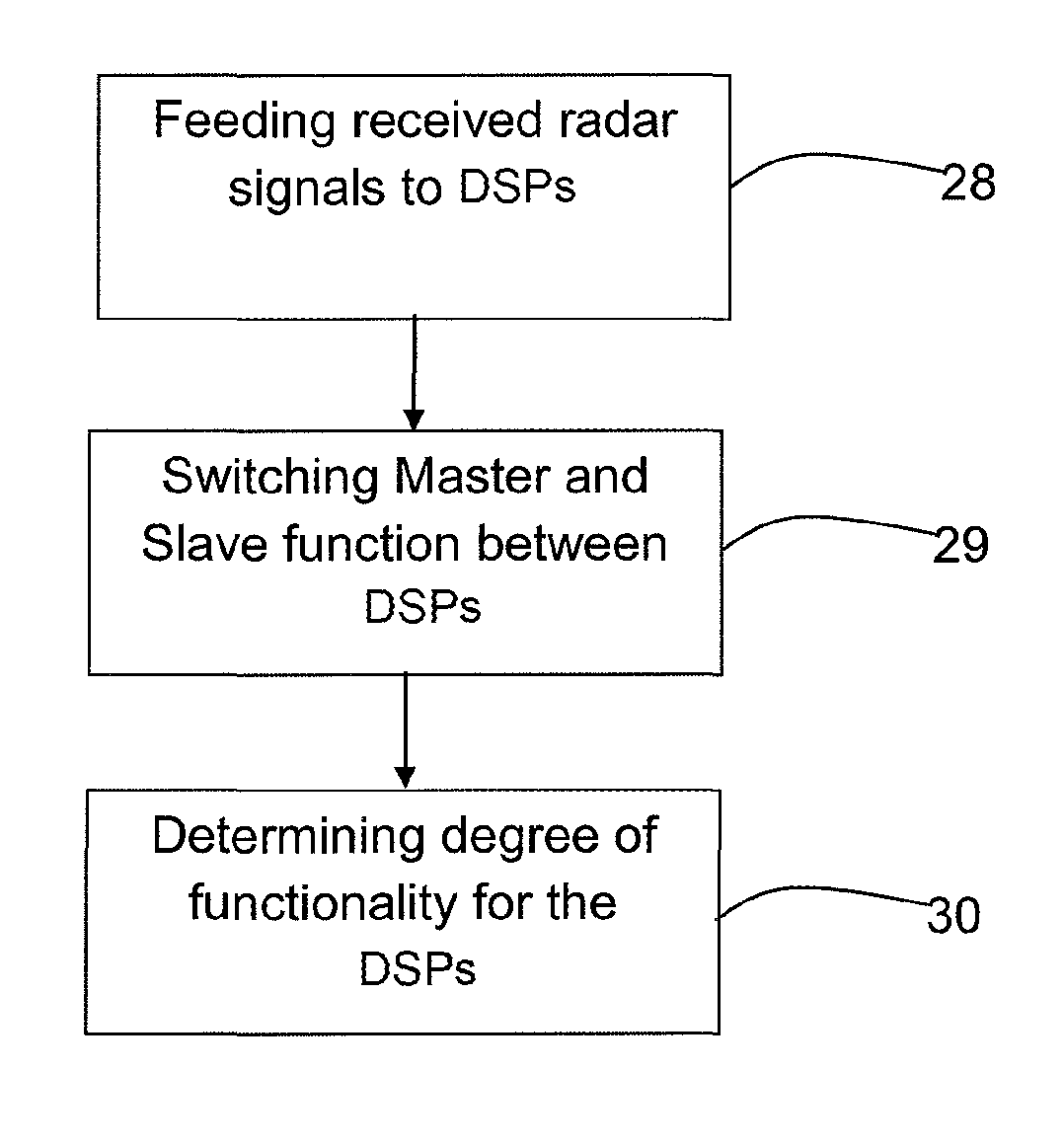

A vehicle radar system (3, 3′, 3″) and method which including a microcontroller unit (21), MCU, and a plurality of Analog to Digital Converters (9, 10, 11, 12), (ADCs), arranged to convert the received signals to a digital form and to transfer the converted digital signals to a first and second Digital Signal Processor (DSP) (18, 19), DSP. The MCU (21) is arranged to control the DSPs (18, 19) such that for one time frame (n), the first DSP (18) functions as a Master DSP and the second DSP (19) functions as a Slave DSP, and such that for the next time frame (n+1), the first DSP (18) is configured to function as a Slave DSP and the second DSP (19) functions as a Master DSP. The MCU compares the raw target data from the first and second DSPs (19) to determine a degree of functionality for the DSPs (18, 19).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G01S Class
- 1778 Applications Filed
- 1682 Patents Issued To-Date
- 94.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01S Class
- 8.06 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
