Connection for refrigerated gas storage tank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Issued Date -
N/A
app pub date -
Mar 4, 2016
filing date -
Mar 5, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

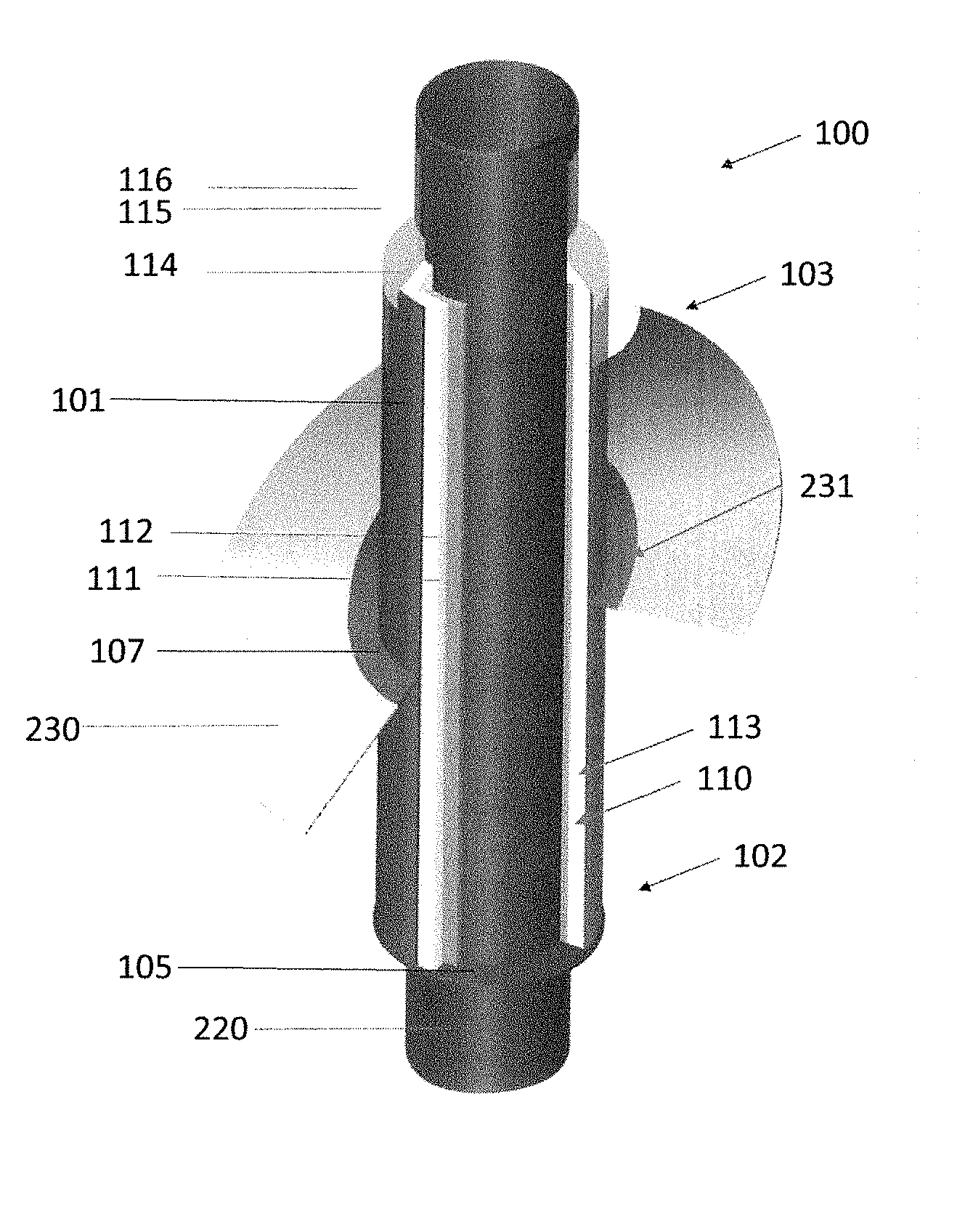

A storage tank includes a tank roof and a tank sidewall. At least one opening is located in at least one of the tank roof or the tank sidewall. A pipe extends through the at least one opening, the pipe having a sleeve assembly positioned around the pipe. The sleeve assembly also extends through the opening. The sleeve assembly includes a sleeve, at least one layer of insulation, and an inner flange. The inner flange is located on a first end of the sleeve and is coupled to the pipe. The sleeve, in turn is coupled to the tank such that the inner flange is located within the storage tank. The at least one layer of insulation is positioned in an annulus between the pipe and the sleeve.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F17C Class
- 418 Applications Filed
- 285 Patents Issued To-Date
- 68.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F17C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
