Earth auger and pole machine, and pole installation method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Issued Date -
N/A
app pub date -
Apr 8, 2016
filing date -
Apr 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

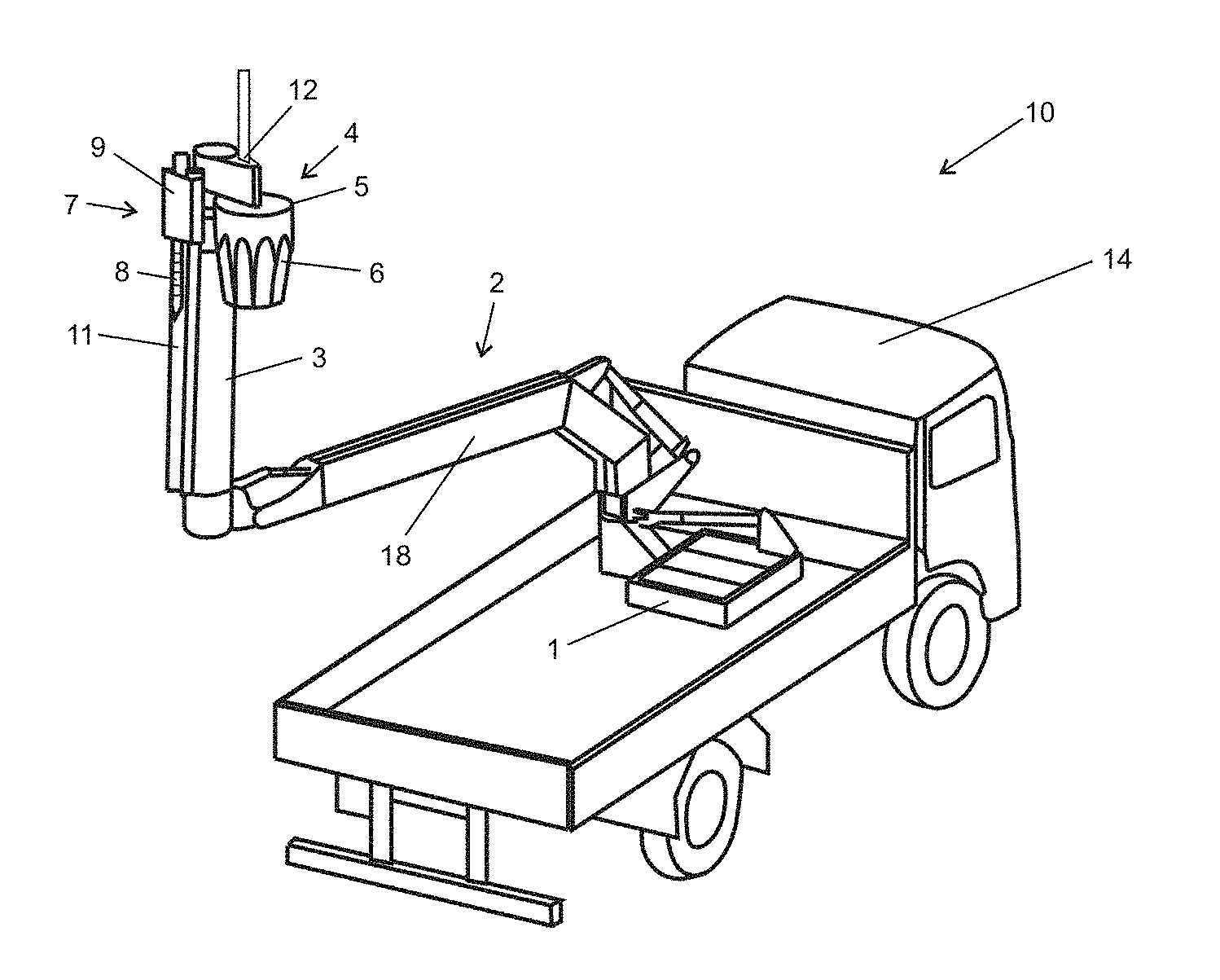

Described herein is an earth auger and pole machine for automated installation of poles in earth banks of access roads to open-pit mines. The earth auger and pole machine is fitted with a mechanic boom comprised of a first link and a second link. The first link has an end attached to a base fixed to a conveyor vehicle, and the other end coupled to the second link. The second link comprises a magazine for loading the poles, an auger system to drill the ground, and an installer to place the poles into the hole. This document also describes a method for installing poles in sequence by using the earth auger and pole machine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- E21B Class
- 4295 Applications Filed
- 3290 Patents Issued To-Date
- 76.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
