Method for manufacturing MEMS torsional electrostatic actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Issued Date -
N/A
app pub date -
Jul 31, 2015
filing date -
Dec 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

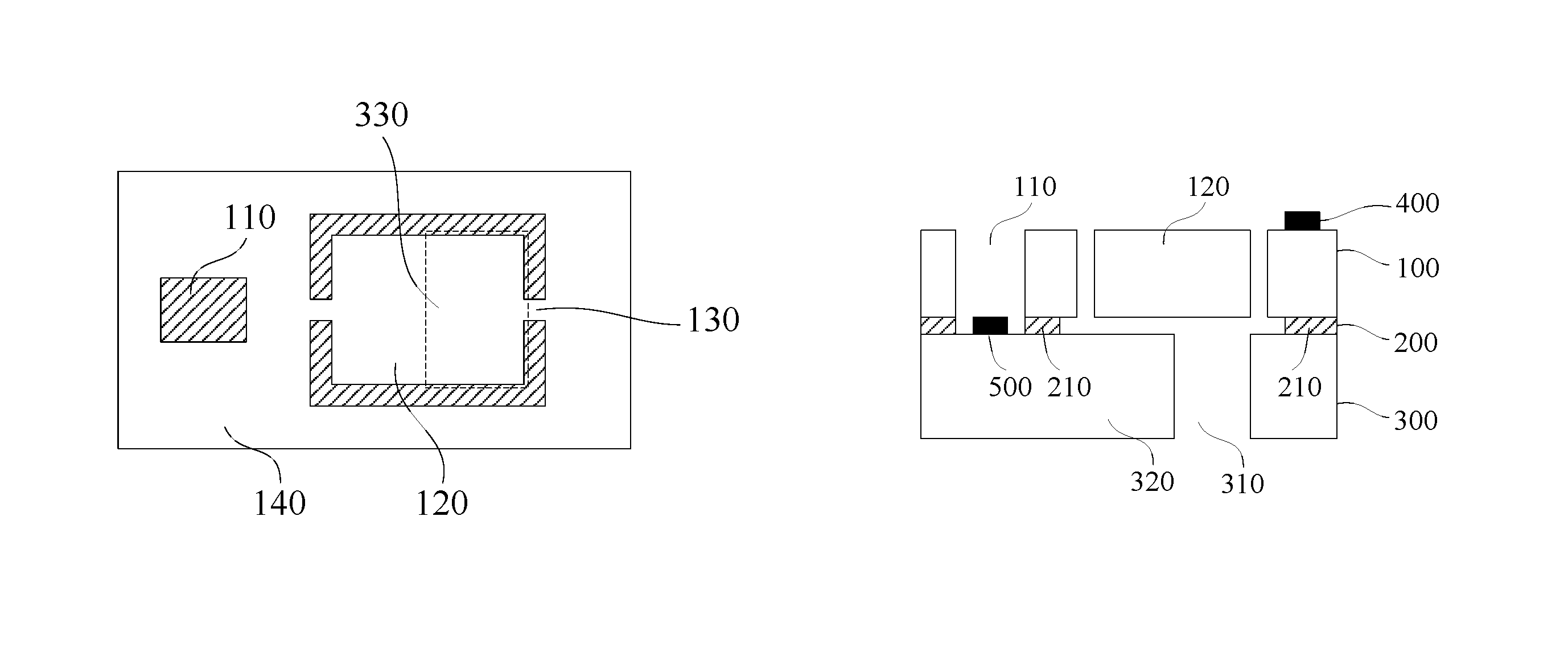

A method for manufacturing an MEMS torsional electrostatic actuator comprises: providing a substrate, wherein the substrate comprises a first silicon layer, a buried oxide layer and a second silicon layer that are laminated sequentially; patterning the first silicon layer and exposing the buried oxide layer to form a rectangular upper electrode plate separated from a peripheral region, wherein the upper electrode plate and the peripheral region are connected by only using a cantilever beam, and forming, on the peripheral region, a recessed portion exposing the buried oxide layer; patterning the second silicon layer and exposing the buried oxide layer to form a back cavity, wherein the back cavity is located in a region of the second silicon layer corresponding to the upper electrode plate, covers 40% to 60% of the area of the region corresponding to the upper electrode plate, and is close to one end of the cantilever beam; exposing the second silicon layer, and suspending the upper electrode plate and the cantilever beam; and respectively forming an upper contact electrode and a lower contact electrode on the second silicon layer.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2015 Application Filing Year
- B81C Class
- 517 Applications Filed
- 370 Patents Issued To-Date
- 71.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B81C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
