Vented draining slack adjuster end cap
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Issued Date -
N/A
app pub date -
Feb 4, 2016
filing date -
Feb 6, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

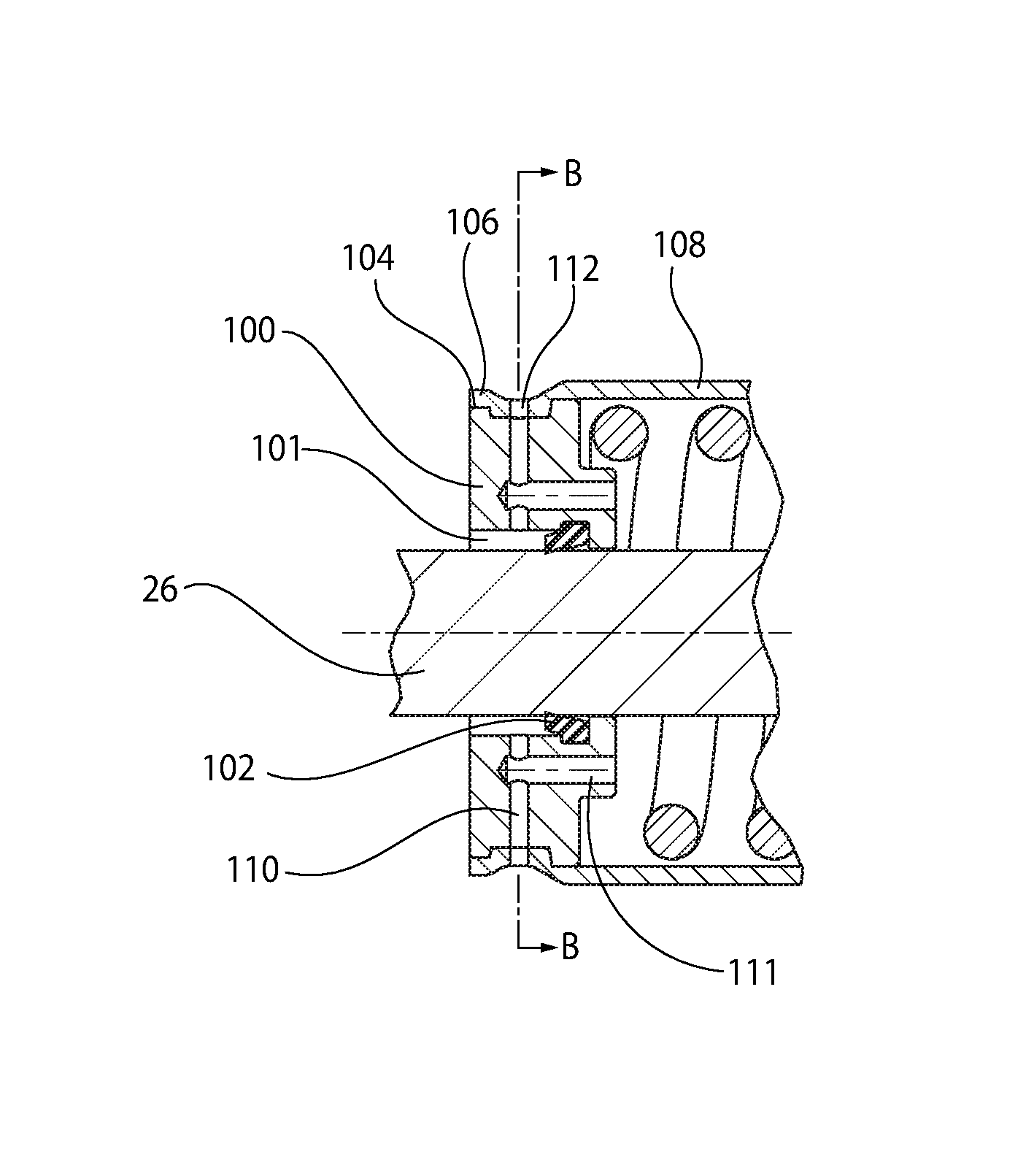

A vented cap for a main spring housing of a slack adjuster including an inner portion having an inner seal surface configured for cooperating with an elongated rod member and an outer seal surface configured for cooperating with a sidewall located at an end portion of the main spring housing. The vented end cap includes at least one opening configured to allow fluid and/or contaminants trapped within the slack adjuster and/or the end cap to drain therethrough. Various seals and/or drainage openings can also be provided along the slack adjuster to prevent the entrance of and/or allow for drainage of fluid/contaminants from the slack adjuster. A method for preventing the accumulation of fluid and/or contaminants within a slack adjuster and for protecting a critical operating area of the slack adjuster is also provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B61H Class
- 71 Applications Filed
- 57 Patents Issued To-Date
- 80.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B61H Class
- 50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
