Vehicle braking control apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Grant Date -
Aug 4, 2016
app pub date -
Jan 14, 2016
filing date -
Jan 29, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

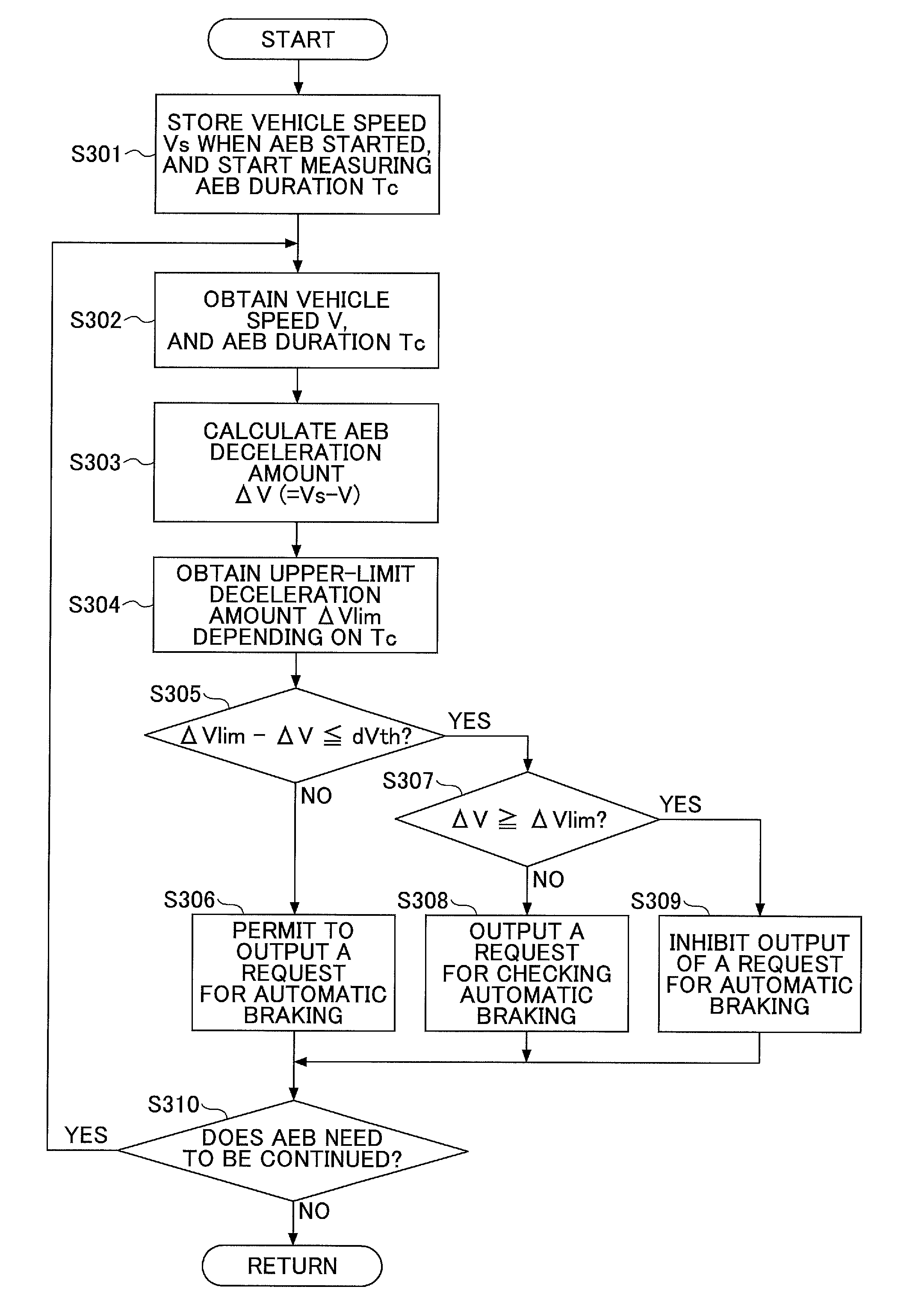

A vehicle braking control apparatus includes an obstacle detection unit configured to detect an obstacle ahead of a vehicle, and to detect a distance to the obstacle from the vehicle, and a relative speed of the obstacle with respect to the vehicle; an electronic control unit configured to generate a braking force of the vehicle automatically based on the distance and the relative speed, and to weaken the braking force when a value subtracting a deceleration amount of a vehicle speed of the vehicle since a start of generating the braking force, from a predetermined upper-limit deceleration amount is less than or equal to a predetermined threshold. The upper-limit deceleration amount is set to increase while an elapsed time increases since the start of generating the braking force, at least after a predetermined first time has passed since the start of generating the braking force.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60T Class
- 1075 Applications Filed
- 884 Patents Issued To-Date
- 82.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60T Class
- 27.91 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
