Detection, diagnosis and monitoring of osteoporosis by a photo-acoustic method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2017
Issued Date -
N/A
app pub date -
Jan 30, 2014
filing date -
Jan 31, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

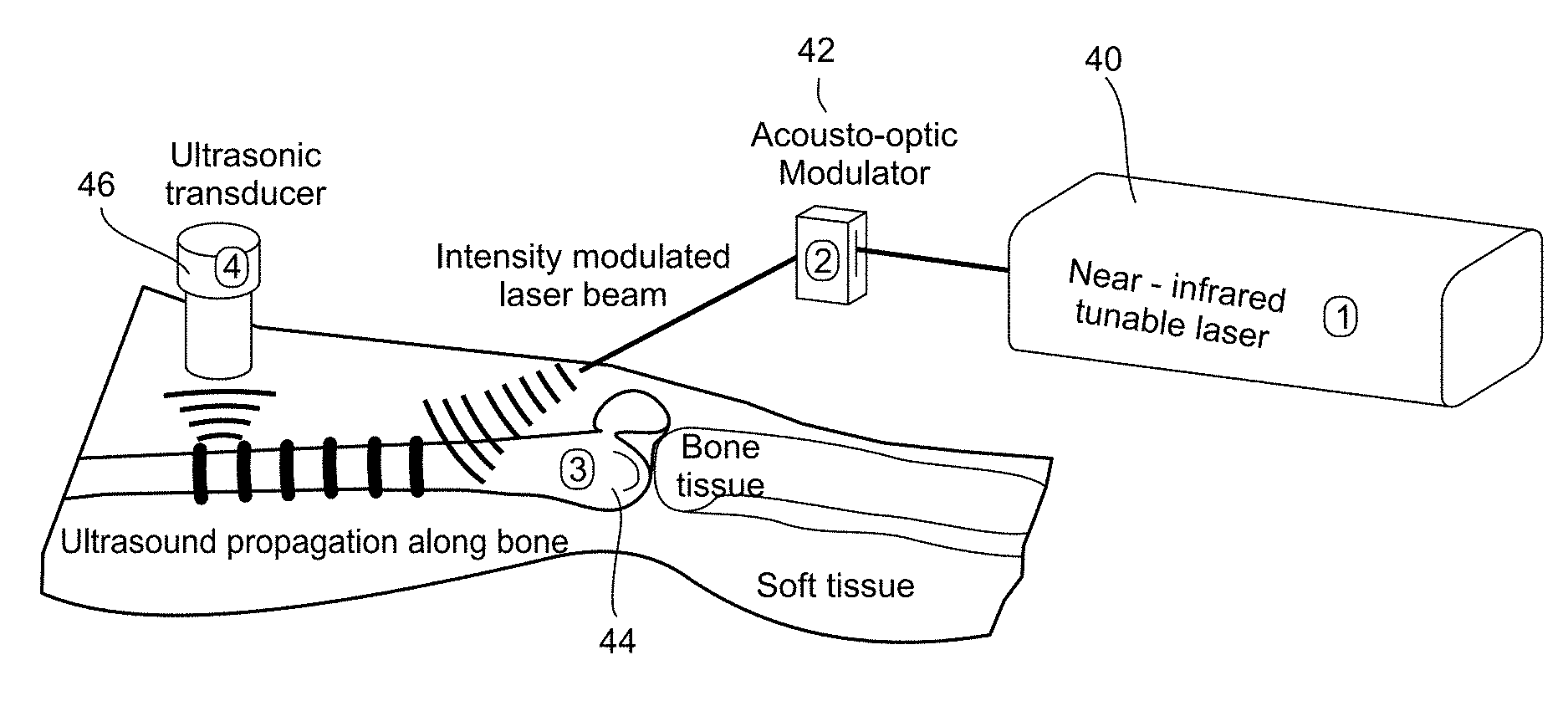

Method for examining bone in vivo, comprises obtaining a laser beam; modulating the laser beam to insert therein photoacoustic frequencies including optical frequencies and acoustic frequencies, the acoustic frequencies being able to give rise to acoustic waves; directing the modulated beam at a bone to cause acoustic waves resulting from the beam to travel through the bone; analyzing received signals from the bone including signals resulting from the acoustic waves, to determine a mineral density and a bone quality for said bone, and thus obtain in-vivo data that can be of assistance to a doctor when diagnosing osteoporosis.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A61B Class
- 14296 Applications Filed
- 12053 Patents Issued To-Date
- 84.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A61B Class
- 14.35 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 5, 2029 |
