Operating device for motor vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Aug 5, 2014
filing date -
Sep 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

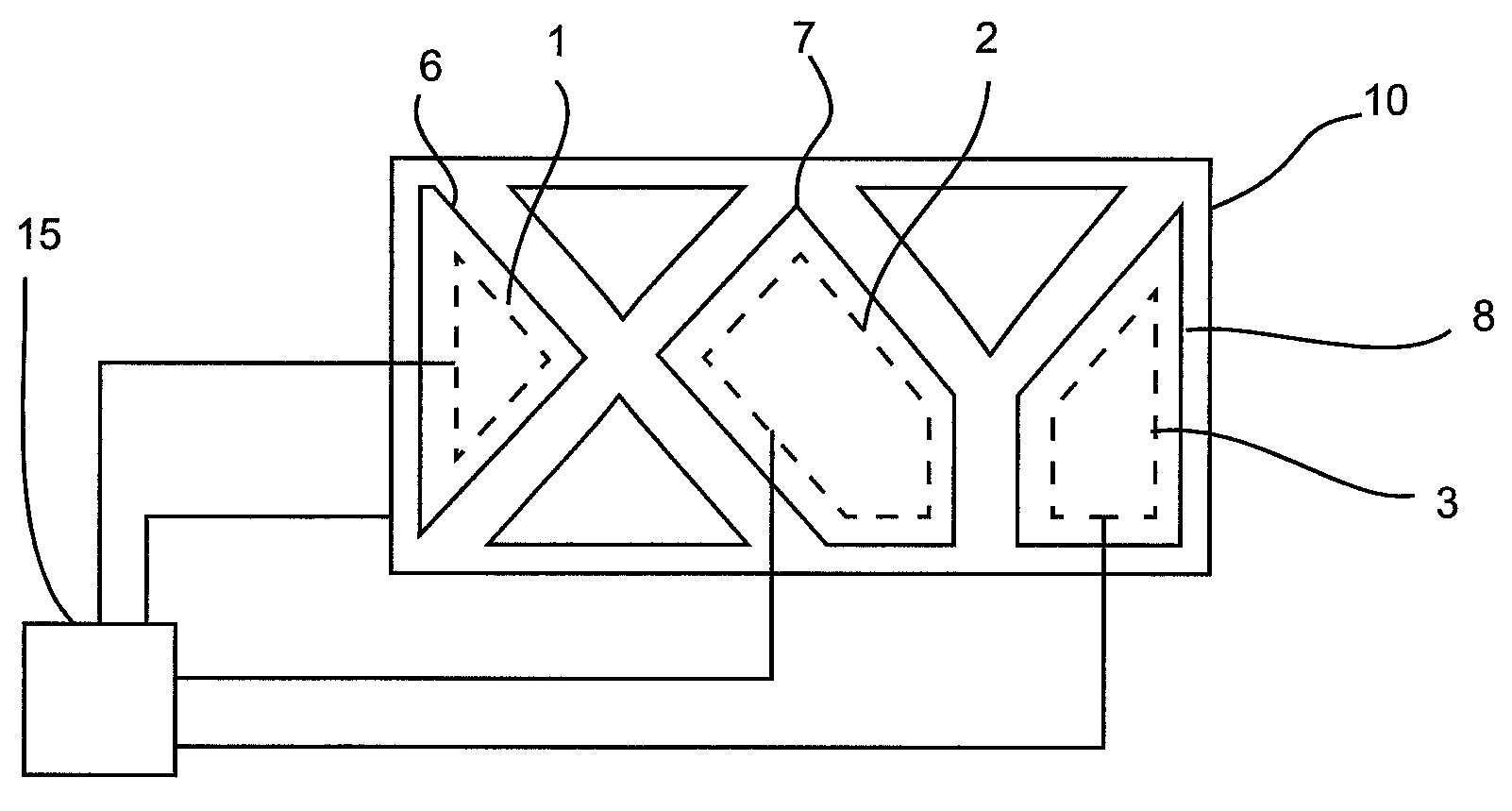

An operating device for a motor vehicle includes a plurality of proximity sensors for detecting contactless actuation. The operating device extends in a first plane and the sensors are disposed in that plane, separated from one another and oriented with their detection regions in the same spatial direction. A control and evaluation device is coupled to the sensors for detection of signals from each of the sensors. The sensors are covered with at least one electrically insulating plastic cover and, thus, separated from the detection region. At least one electrically conductive separating device is disposed between the sensors and oriented toward the side facing the detection regions, and directly adjacent to the plastic cover.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H03K Class
- 2384 Applications Filed
- 2057 Patents Issued To-Date
- 86.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
