Valve arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Apr 15, 2014
filing date -
Apr 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

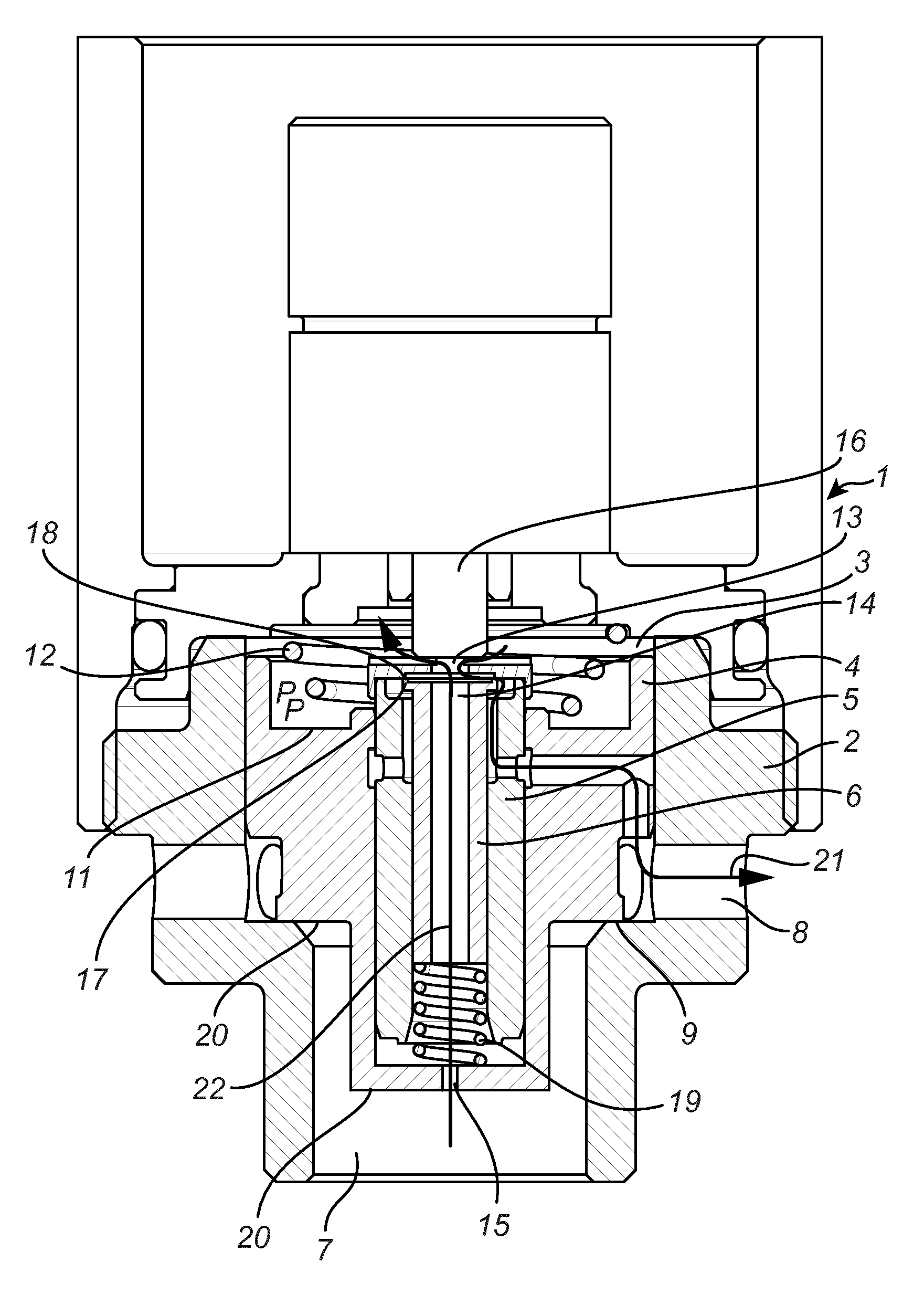

A valve arrangement comprising a main valve member being axially movably arranged in a valve housing and arranged to interact with a main valve seat of the valve housing in order to restrict or regulate a pressure in a main fluid flow in response to a pilot pressure acting on the main valve member. A control valve member is axially movable within the main valve member in response to an actuating force acting on the control valve member. A pilot valve member is axially movable within the control valve member, and is arranged to interact with a pilot valve seat of the control valve member to restrict a pilot fluid flow out from a pilot chamber. The pilot valve member is resiliently loaded towards the pilot valve seat relative the main valve member or the valve housing, such that the resilient loading on the pilot valve member is adjustable in response to the actuating force.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16F Class
- 842 Applications Filed
- 712 Patents Issued To-Date
- 84.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16F Class
- 30.41 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
