Bilge pump having concealed air-lock vent
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Feb 28, 2014
filing date -
Feb 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

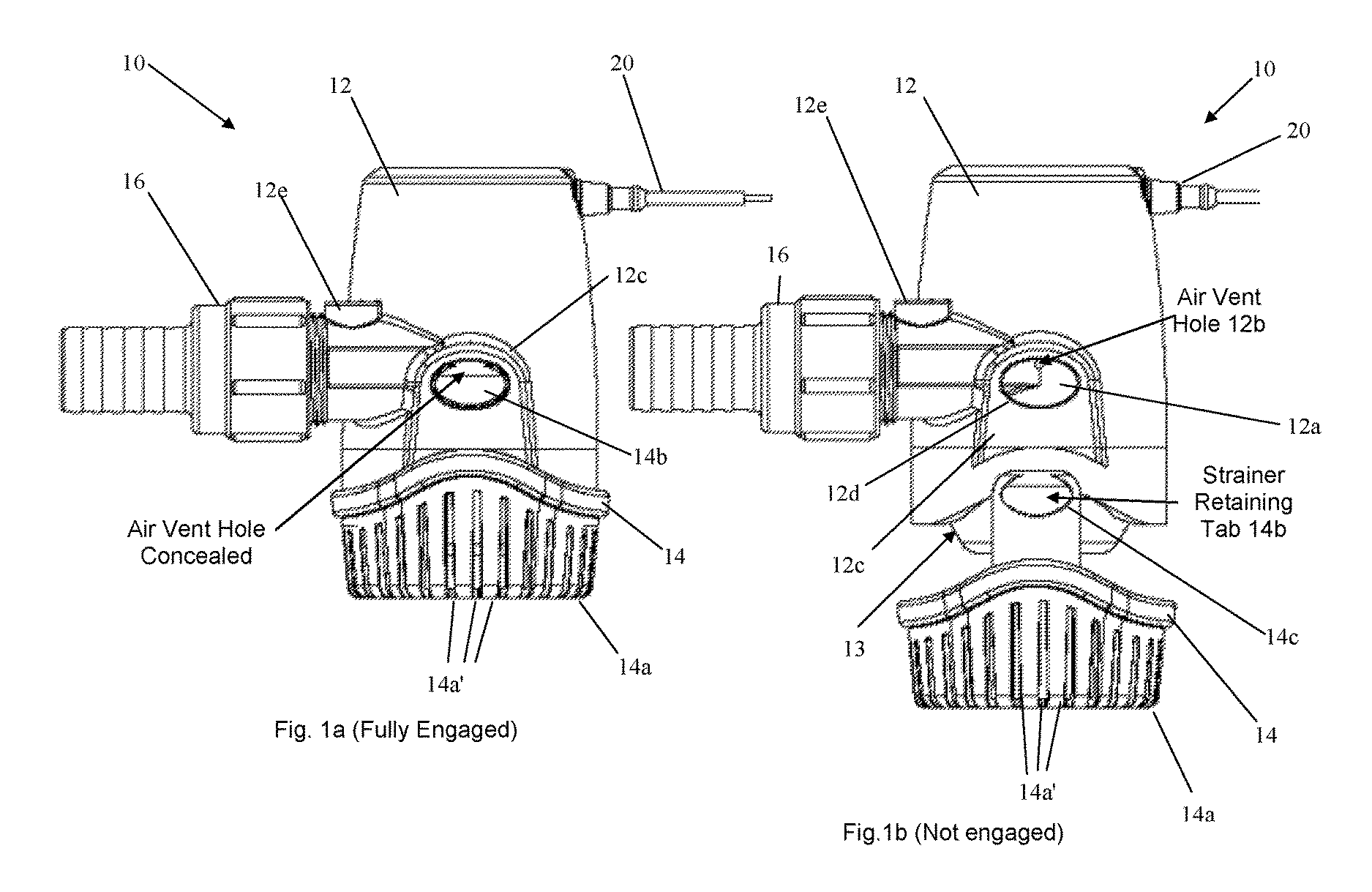

The pump has a pump body having a pump body portion with a vent hole to allow air entrapped in the pump body to bleed out to atmosphere and allow liquid to fill the pump body in order to get the pump running, and also includes a tab receiving portion having a rim defining an opening; and a pump/strainer assembly that includes a base with slots/openings formed therein to receive and strain liquid to be pumped, and includes a strainer retaining tab with a raised rim to be received in the opening of the tab receiving portion and circumferentially engaged by the rim of the opening to hold together the pump/strainer assembly and the pump body. The at least one tab receiving portion and the strainer retaining tab are dimensioned to conceal the vent hole and substantially prevent the liquid from bleeding through the vent hole and squirting outside of the pump body when the pump is running.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- F04D Class
- 1416 Applications Filed
- 1174 Patents Issued To-Date
- 82.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F04D Class
- 27.01 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
