Flush mounted vinyl nozzle assembly and methods of use
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Jul 21, 2015
filing date -
Sep 27, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

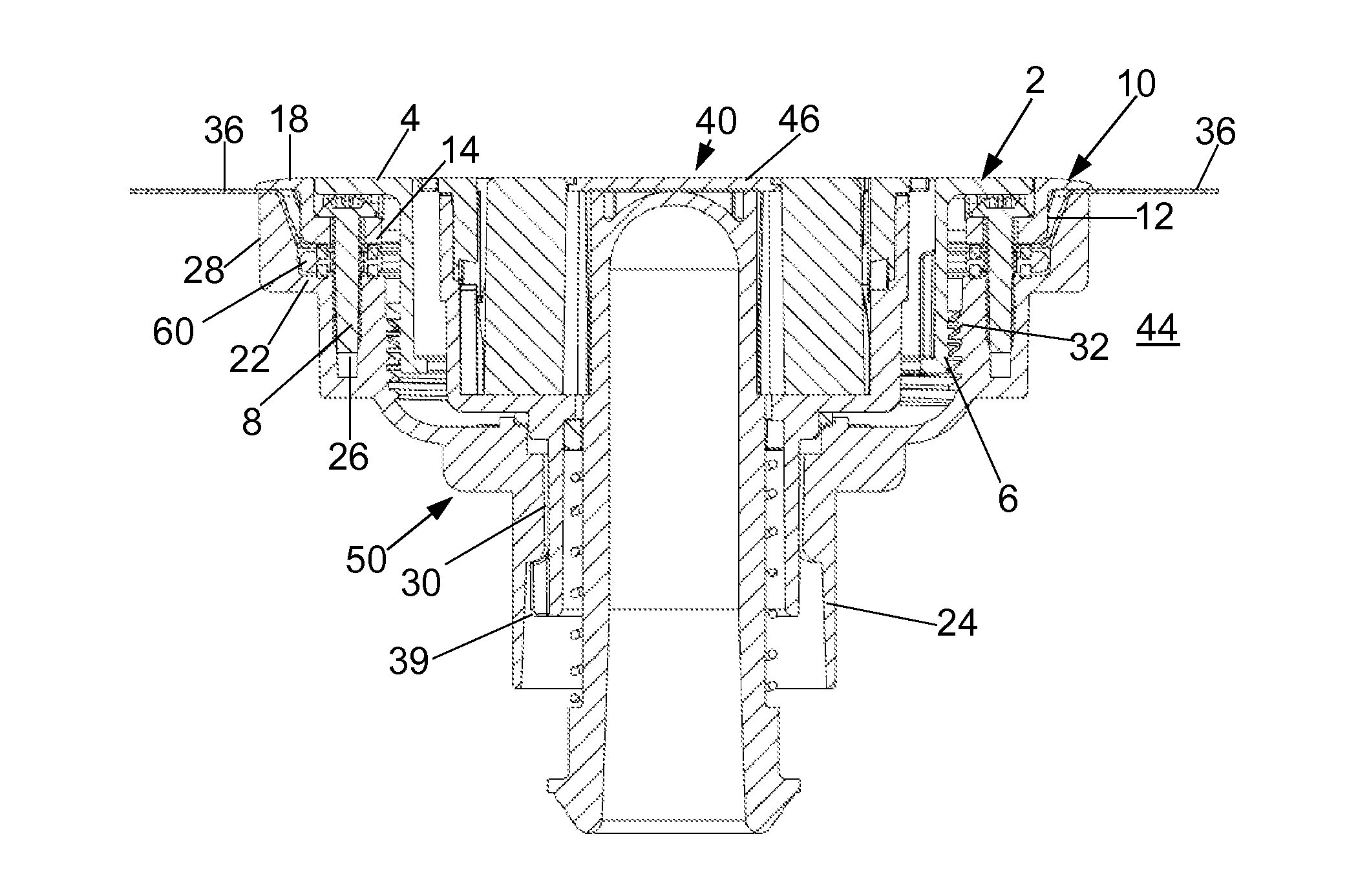

A pool nozzle assembly includes a body, a clamp ring, a plurality of screws, a cover ring, and a nozzle. The body includes a body rim having a plurality of screw receivers and a female threaded portion. The clamp ring is removably coupled to the body and couples a vinyl liner between the clamp ring and the body. The clamp ring includes an inner rim and an outer rim. The plurality of screws removably couple the clamp ring to the body. The cover ring includes a cover rim and a male threaded portion threadedly coupled to the female threaded portion. The cover rim covers the plurality of screws and is substantially planar with the outer rim. The nozzle is removably coupled to the base of the body such that a top end of the nozzle is substantially planar with outer rim and the cover rim.
