Terry article with synthetic filament yarns and method of making same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Sep 26, 2015
filing date -
Sep 10, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

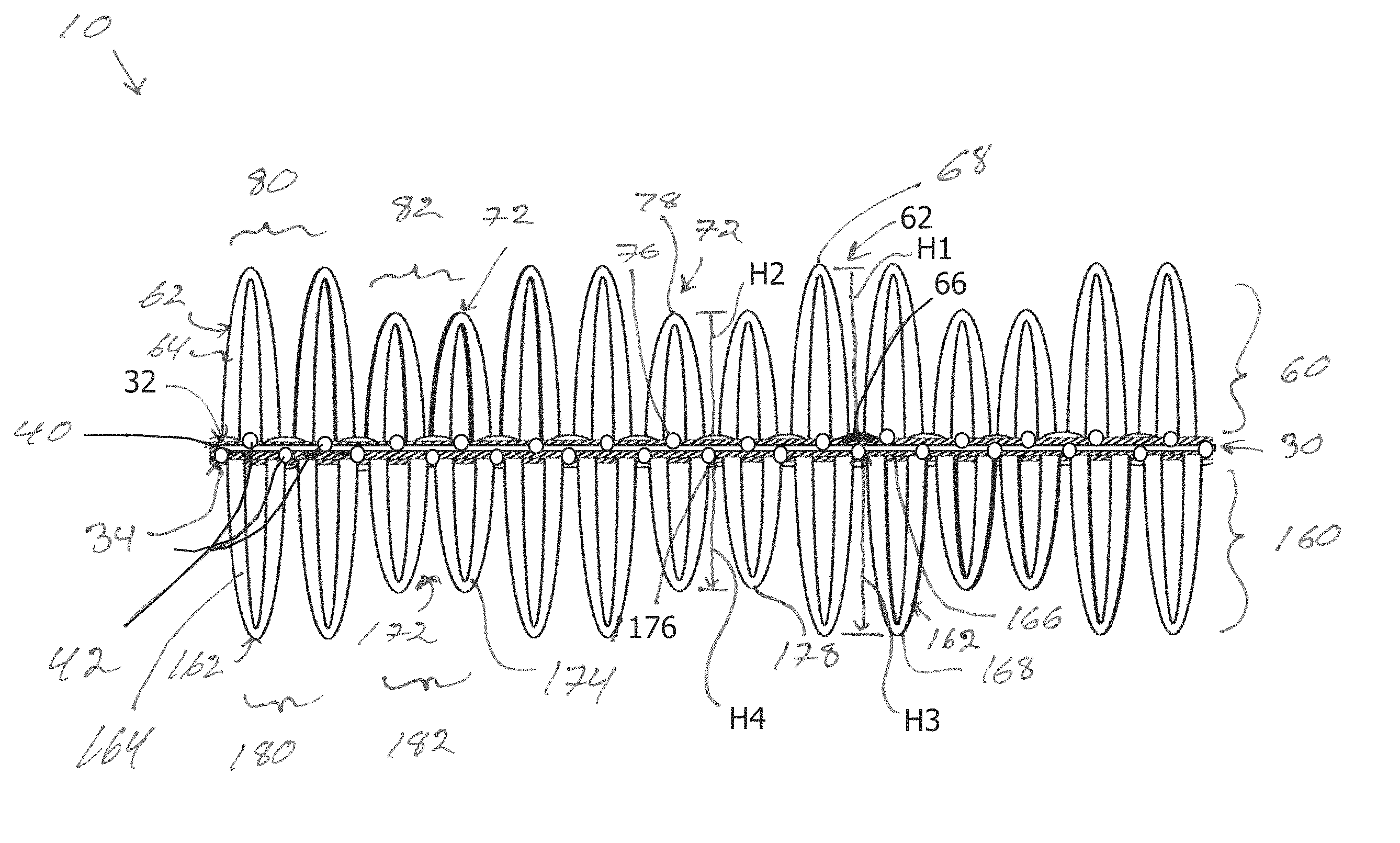

A terry article includes a ground component including a plurality of ground warp yarns and a plurality of weft yarns, and a pile component disposed on at least one of a lower side and an upper side of the ground component. The pile component includes a first plurality of piles that extend away from the ground component along a vertical direction. The first plurality of piles are formed from a first set of pile yarns comprised of natural fibers and further define a first pile height. The pile component also includes a second plurality of piles that extend away from the ground component in the vertical direction. The second plurality of piles are formed from a set of continuous filament thermoplastic yarns and define a second pile height that is less than the first pile height.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D03D Class
- 219 Applications Filed
- 163 Patents Issued To-Date
- 74.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- D03D Class
- 33.91 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
