Automated truck unloader for unloading/unpacking product from trailers and containers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Jul 11, 2017
filing date -
Jan 20, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

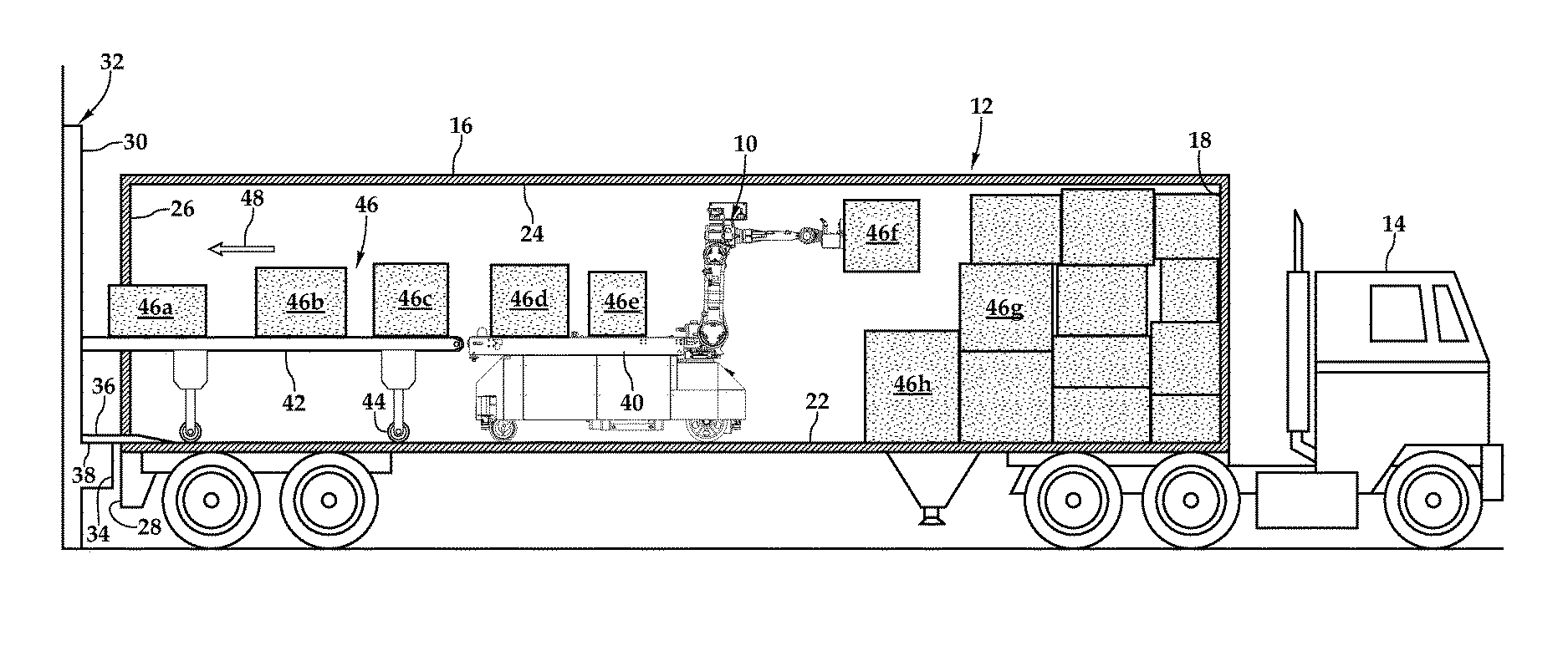

An automatic truck unloader for unloading/unpacking product, such as boxes or cases, from trailers and containers is disclosed. In one embodiment, a mobile base structure provides a support framework for a drive subassembly, conveyance subassembly, an industrial robot, a distance measurement subassembly, and a control subassembly. Under the operation of the control subassembly, an industrial robot having a suction cup-based gripper arm selectively removes boxes from the trailer and places the boxes on a powered transportation path. The control subassembly coordinates the selective articulated movement of the industrial robot and the activation of the drive subassembly based upon the distance measurement subassembly detecting objects, including boxes, within a detection space, and dimensions of the trailer provided to the control subassembly.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
