Suspension and lock-out systems for a tracked vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2017
Grant Date -
Jun 18, 2015
app pub date -
Jul 3, 2013
filing date -
Jul 6, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

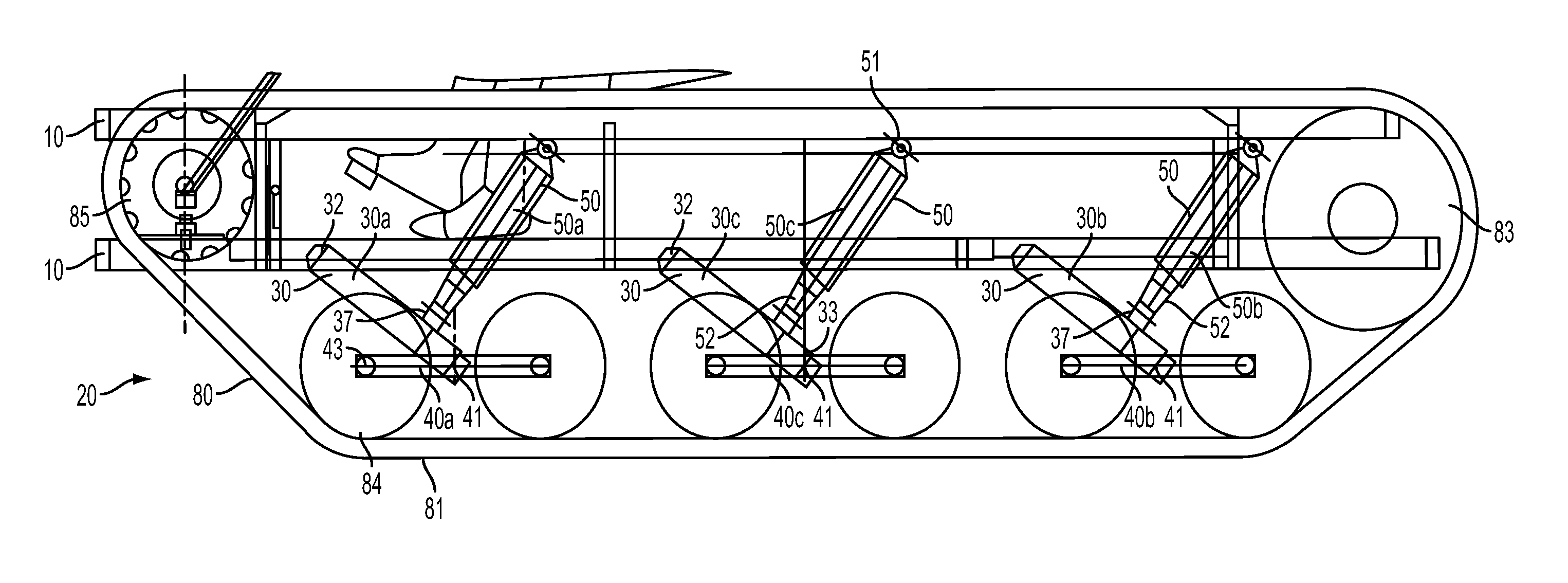

A suspension for a tracked utility vehicle is provided. The trailing link suspension for the tracked utility vehicle has at least two trailing links. Each of said trailing links has a shock and a walking beam. The first end of the trailing link is pivotably connected to the tracked utility vehicle chassis. The second end of said trailing link is pivotably connected to the walking beam. The first end of the shock is pivotably connected to the chassis and the second end is pivotably connected to the trailing link. The walking beam has a plurality of axle mounted bogey wheels for engaging one or both of the track of said tracked utility vehicle or the track lug or guide. The shocks are independently adjustable to permit more of the tracked utility vehicle's weight to be supported at the suspension midpoint.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- B62D Class
- 87.67 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
