Active grille shutter system with integrated radar
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Nov 24, 2015
filing date -
Nov 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

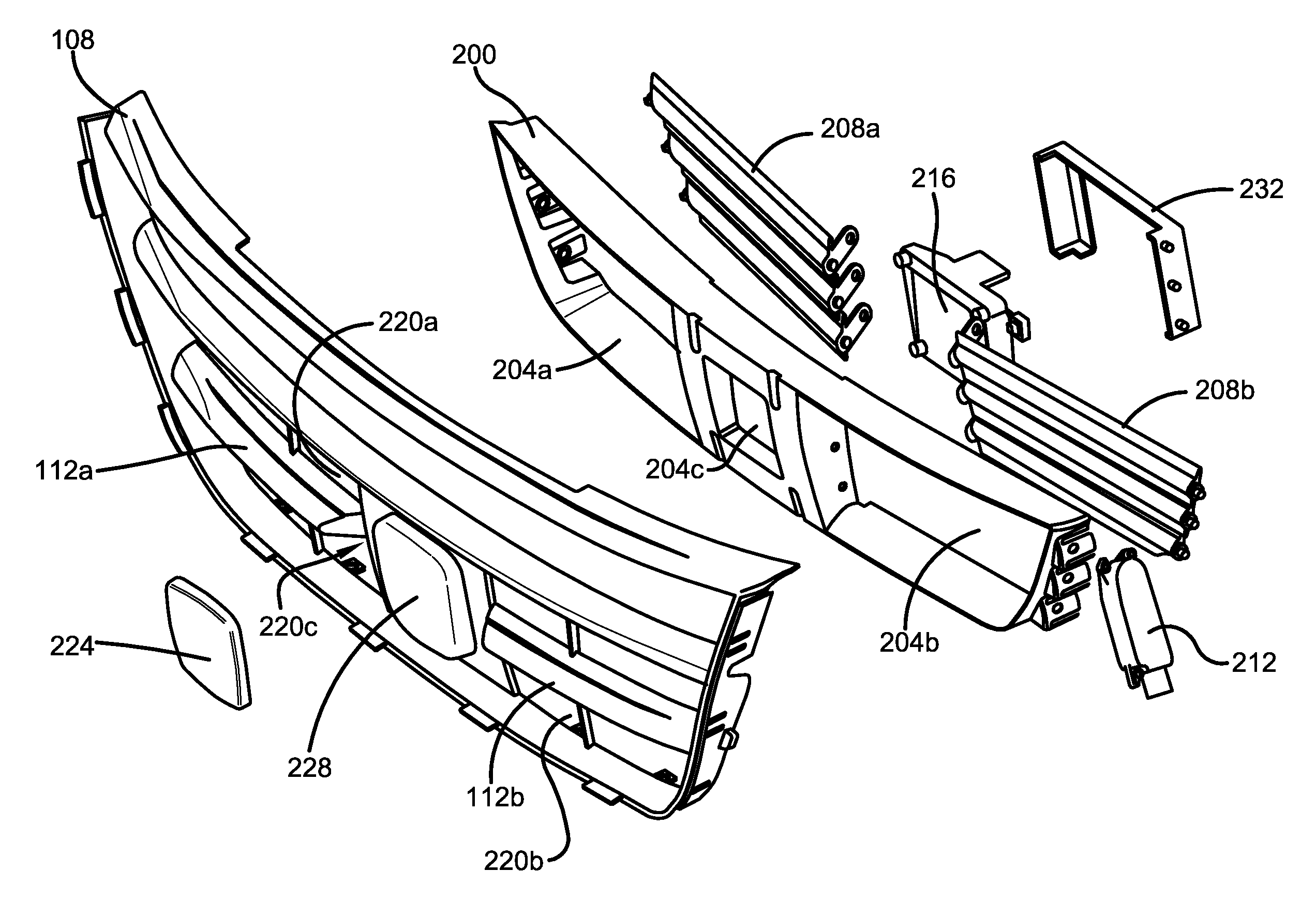

An active grille shutter (AGS) system for a vehicle can include a housing defining first, second, and third openings, the third opening being located between the first and second openings and being configured to receive an object detection device that is configured to detect objects in front of the vehicle, a first set of louvers arranged in the first opening, a second set of louvers arranged in the second opening, and a linkage connecting the first and second sets of louvers, wherein a set of actuators are configured to selectively open/close the first and second sets of louvers by driving the linkage or at least one of the first and second sets of louvers. The AGS system can be configured to be fully-integrated, semi-integrated, or standalone with respect to a grille assembly of the vehicle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60K Class
- 2427 Applications Filed
- 1969 Patents Issued To-Date
- 81.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- B60K Class
- 86.38 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
