Air hose hanger for a rail way vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Grant Date -
Sep 1, 2016
app pub date -
May 12, 2016
filing date -
Jan 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

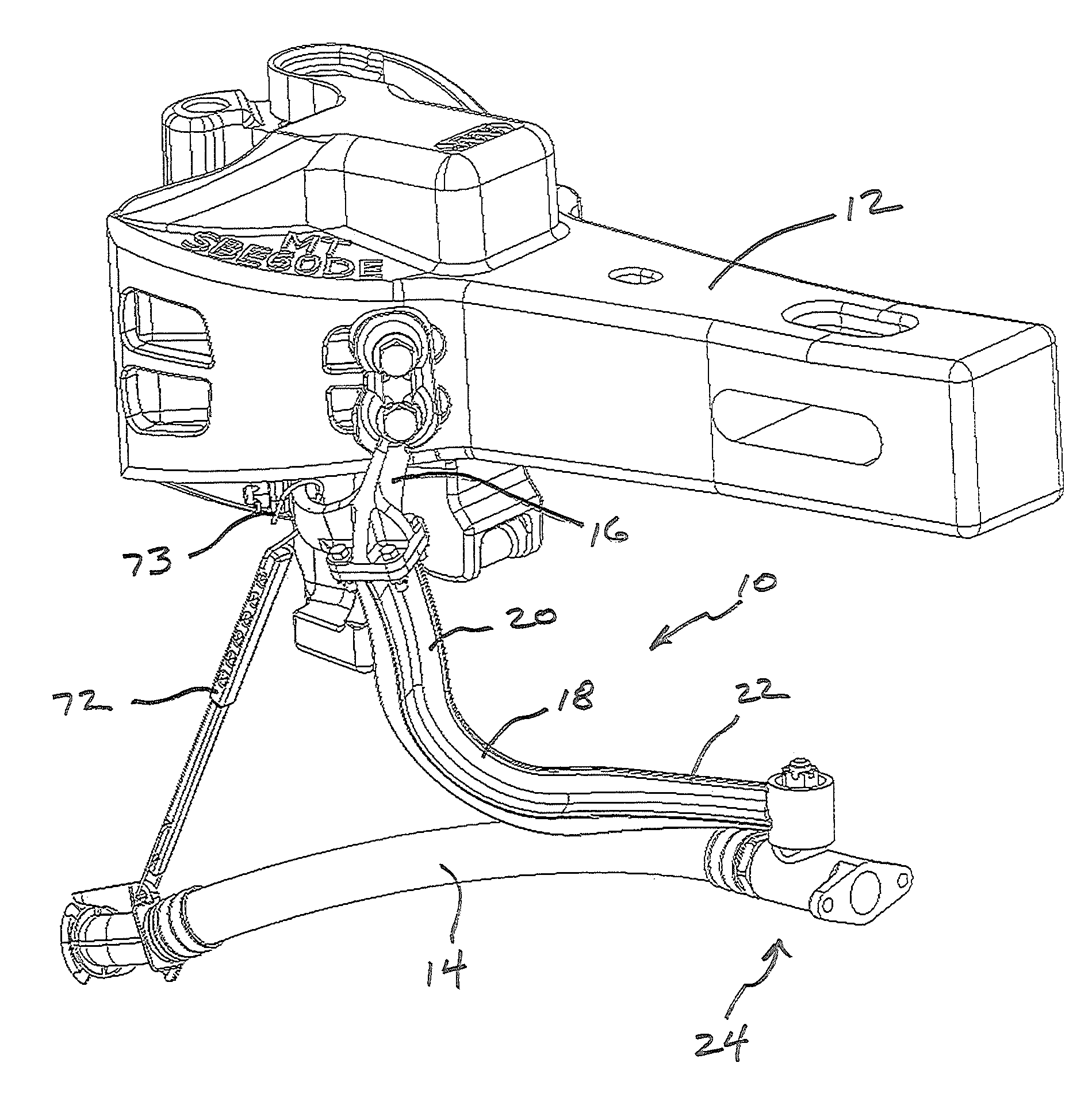

An air hose hanger for supporting flexible air hoses of a trainline braking system of a rail car includes a head including a mounting plate for mounting the hanger to a coupler of a rail car, the mounting plate including first and second apertures for receiving bolts for attaching the mounting plate to the coupler, and an arm removably attached to the head. The arm includes a first arm removably attached to the head extending in a substantially vertical direction away from the head, and a second arm integral with the first arm and extending in a horizontal direction substantially parallel to an axis of the coupler. The head is attached to the coupler at three preformed holes formed in the coupler. The head is attached to the arm via respective connector plates having a mating dove-tail connection for connecting the arm and head together to ensure proper installation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16L Class
- 1971 Applications Filed
- 1425 Patents Issued To-Date
- 72.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16L Class
- 26.55 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
