Heat exchanger and method of manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Jul 6, 2015
filing date -
Jul 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

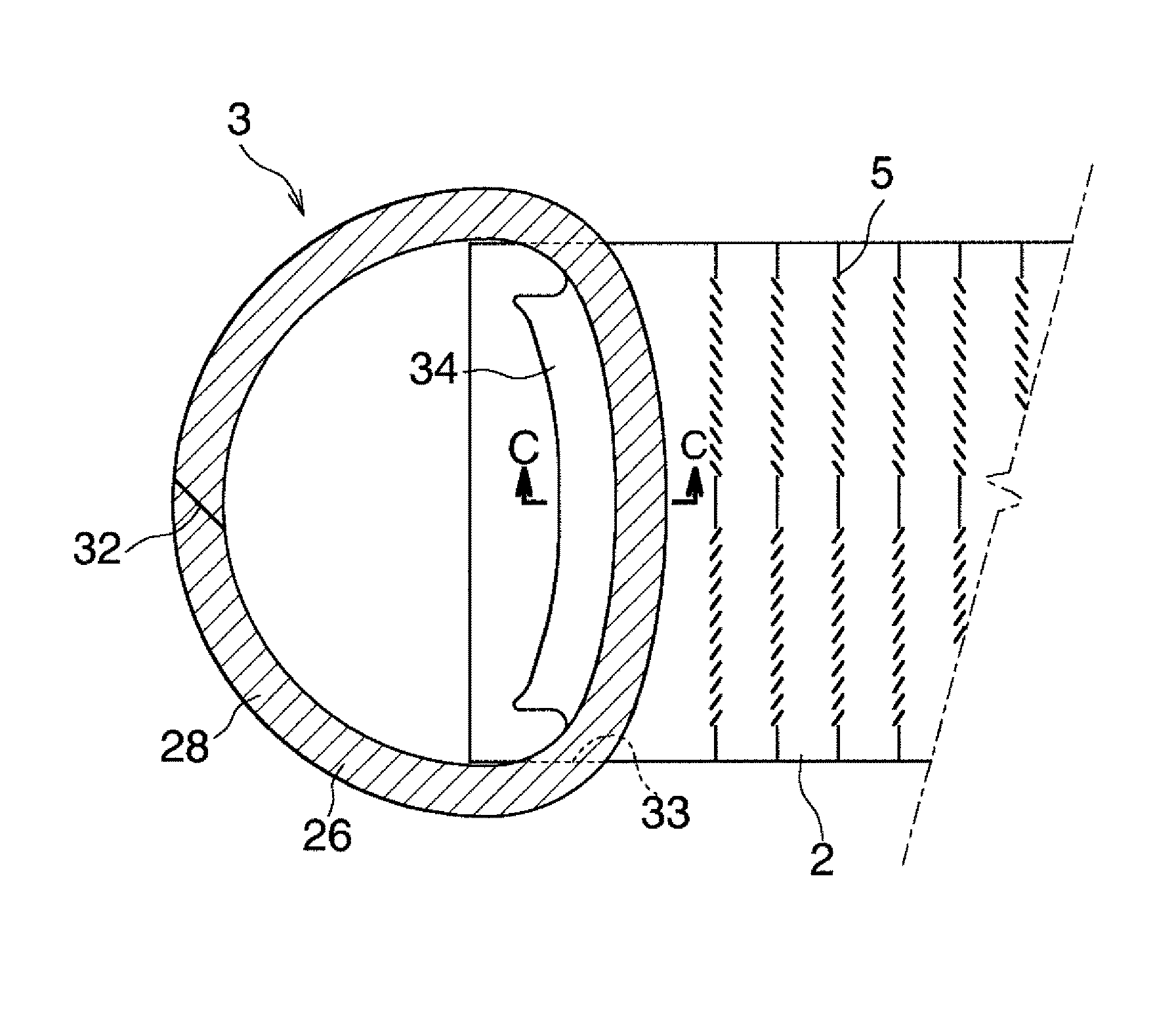

Each heat exchange tube of a condenser is formed of a first brazing sheet having a core material and a first brazing material covering the core material. The tank body of each header tank is formed of a second brazing sheet having a core material and a third brazing material covering the core material and being lower in flowability than the first brazing material. In a region of a surface of each protrusion portion facing the corresponding heat exchange tube, the region having a predetermined width as measured from the projecting end, the core materials of the two brazing sheets are brazed together by means of the first brazing material. In the region other than the brazed portion, the core materials of the two brazing sheets are brazed together by means of a fillet formed of a mixture of the first and third brazing materials.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
