Multi-compartment reactor and method for controlling retention time in a multi-compartment reactor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Grant Date -
Feb 19, 2015
app pub date -
Aug 21, 2013
filing date -
Aug 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

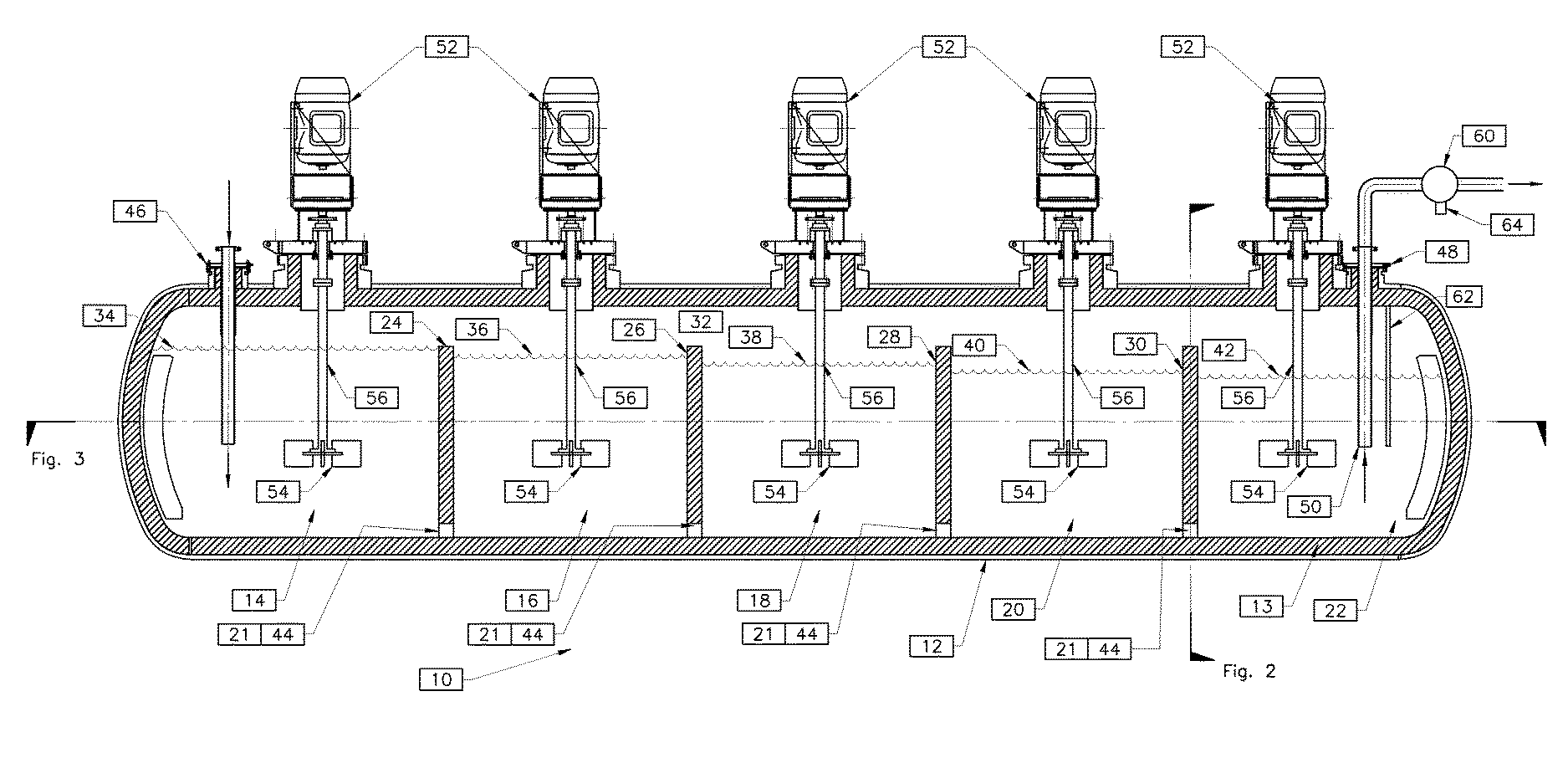

A method is disclosed for controlling retention time in a reactor, such as an autoclave, having a plurality of compartments separated by dividers with underflow openings. A retention time of the reaction mixture is calculated and compared with an optimal retention time, and the volumes of the reaction mixture in the compartments are adjusted while maintaining the flow rate of the reaction mixture, so as to change the retention time to a value which is closer to the optimal retention time. The reactor may include a level sensor in the last compartment for generating volume data; a control valve for controlling the liquid level in the last compartment; and a controller which receives volume data from the level sensor and controls operation of the control valve.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
