Seat, in particular an office chair
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 28, 2017
Issued Date -
N/A
app pub date -
Oct 19, 2016
filing date -
Jun 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

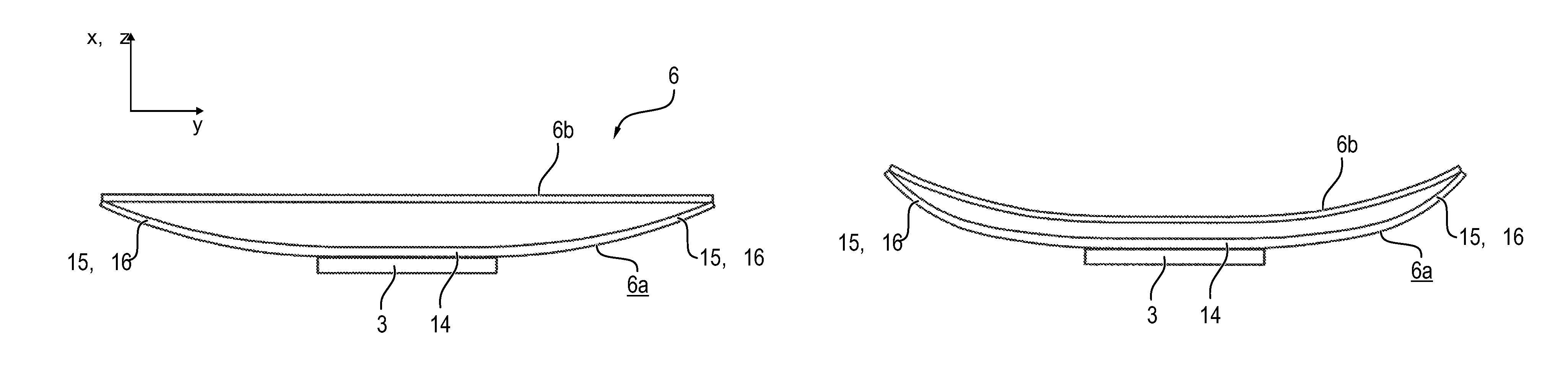

The invention relates to a seat (1), in particular an office chair, comprising a seat support (3) for a seating surface (6) and comprising a backrest support (4) of a backrest (5), which is held on the seat support (3) so as to be able to move in a tiltable manner to the side, wherein the backrest support (4) comprises two support arms (4a, 4b) which are configured to be flexible and/or articulated laterally and spaced apart from one another. Preferably, the seating surface (6) and/or the backrest (5) comprises a curved seat shell and/or backrest shell (6a, 5a) provided with a cover (6b, 5b) with a number of flexible curved ribs (15, 16) on the edge of the shell, wherein the cover is stretched by the seat shell and/or backrest shell (6a, 5a) such that when the cover (6b, 5b) is loaded, the bending of the curved ribs (15, 16) is altered.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- A47C Class
- 1122 Applications Filed
- 792 Patents Issued To-Date
- 70.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- A47C Class
- 15.45 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 28, 2029 |
