Highly linear, highly efficient wideband RF power amplifier having wide video bandwidth capability
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2017
Issued Date -
N/A
app pub date -
Mar 16, 2016
filing date -
Mar 16, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

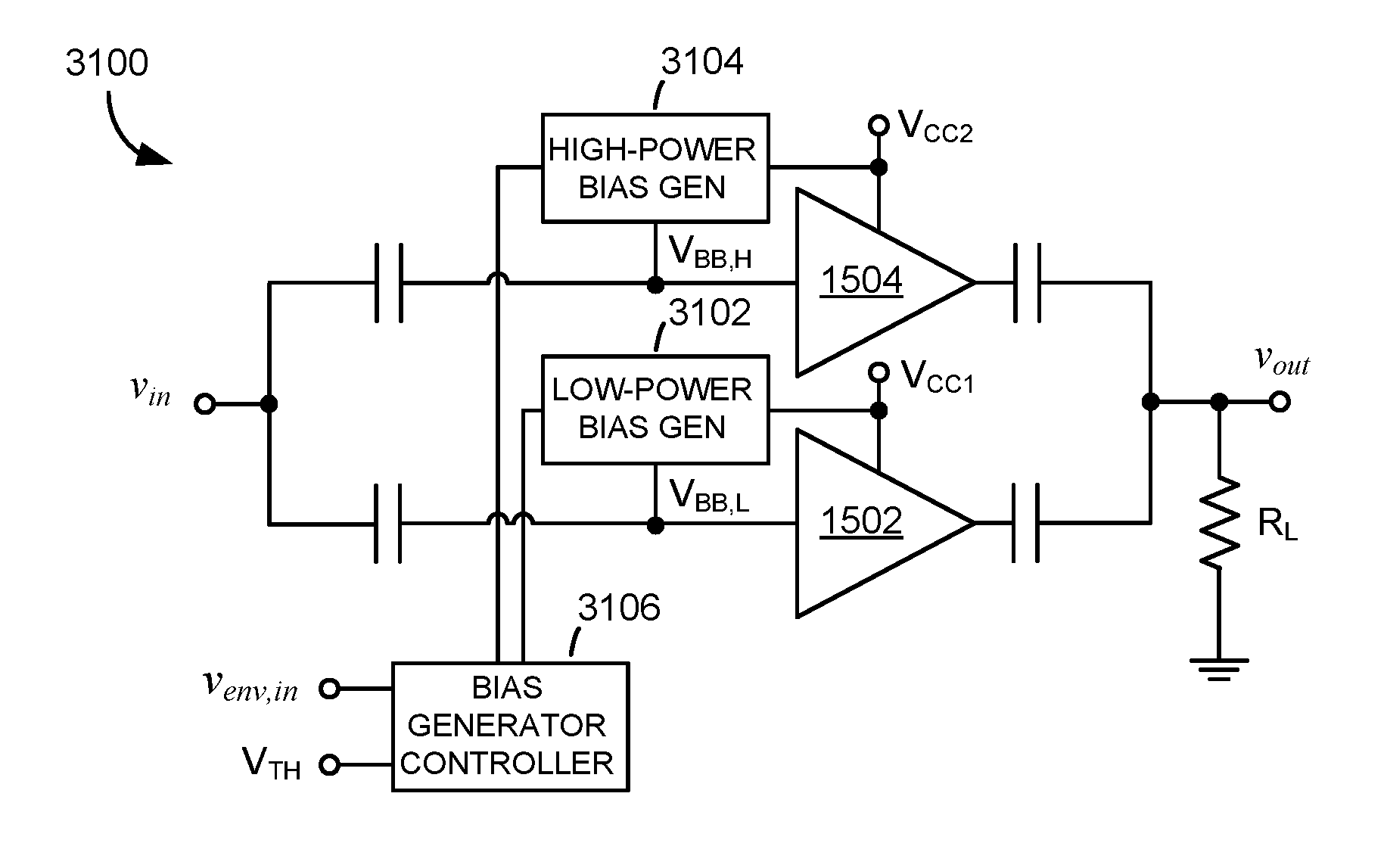

A radio frequency power amplifier (RF PA) apparatus includes a first RF PA, a second RF PA, and a controller. The first RF PA is configured to deliver RF power to a load over a first range of RF power levels. The second RF PA is configured to deliver RF power to the load over a second range of RF power levels greater than the first range of RF power levels. The controller controls whether the first RF PA is delivering RF power to the load or the second RF PA is delivering RF power to the load, and is further configured to coordinate and control handoffs between the first and second RF PAs by varying magnitudes of input RF voltages applied to the RF input ports of the first and second RF PAs or by varying magnitudes of input bias voltages applied to the RF input ports of the first and second RF PAs.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H03F Class
- 13.60 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2029 |
