Vibration generator and stacked-structure generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2017
Issued Date -
N/A
app pub date -
Feb 5, 2013
filing date -
Jan 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

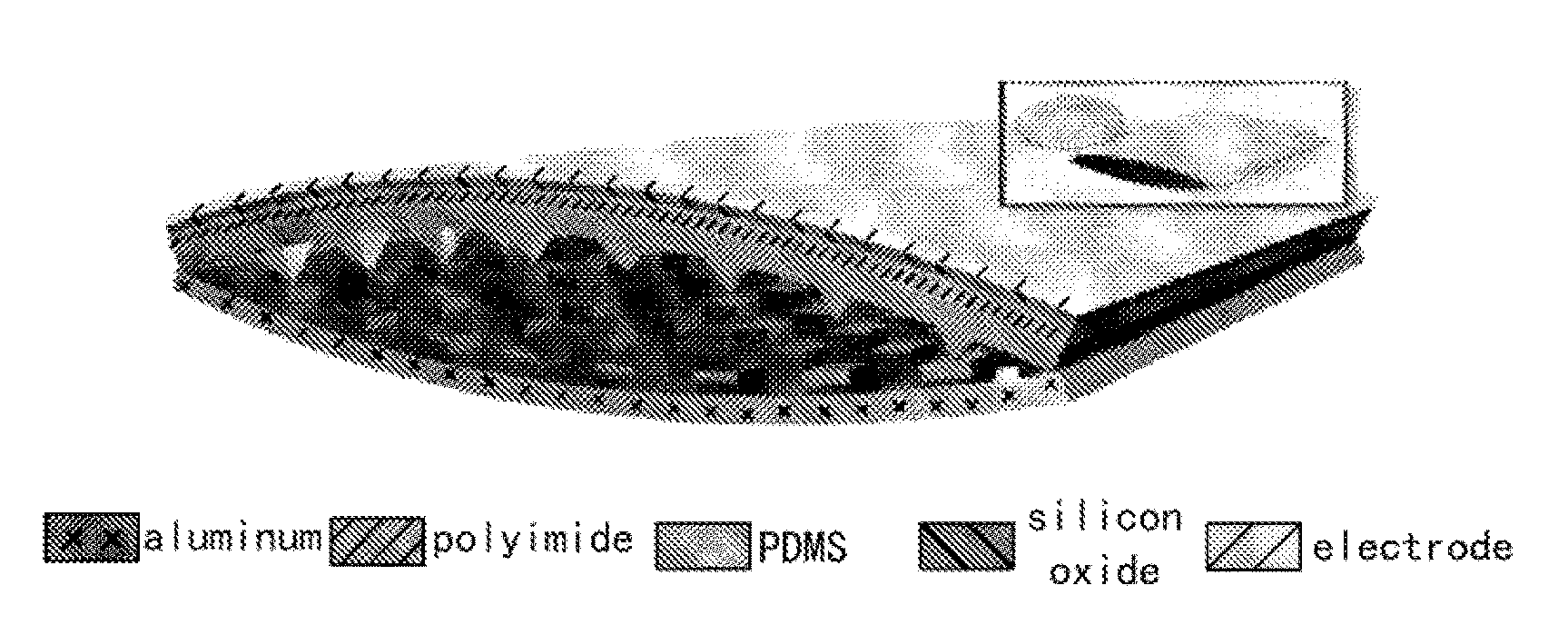

The disclosure discloses a vibration generator and a stacked-structure generator. The vibration generator includes an arched friction unit 1 and an arched friction unit 2. An concave inner surface of the arched friction unit 1 and an concave inner surface of the arched friction unit 2 are located opposite to each other as friction surfaces; and, the arched friction units 1 and 2 are provided with electrodes at convex outer surfaces thereof, which are concurrently served as supporting layers. The stacked-structure generator includes a plurality of the vibration generators, and several sets of a first geometrically complementary-shaped friction unit, which matches the electrode of the vibration generator that is concurrently served as the supporting layer, and a second geometrically complementary-shaped friction unit. The first geometrically complementary-shaped friction unit and the electrode concurrently served as the supporting layer that is coupled thereto and the second geometrically complementary-shaped friction unit and the electrode concurrently served as the supporting layer that is coupled thereto are attached to form a vibration generator that is complementary to the vibration generator. The present disclosure greatly increases output voltage of the generator and effectively increases collection and usage of environment energy.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H01L Class
- 22267 Applications Filed
- 20713 Patents Issued To-Date
- 93.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- H01L Class
- 18.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2029 |
