Optical device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2017
Issued Date -
N/A
app pub date -
Mar 25, 2014
filing date -
Apr 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

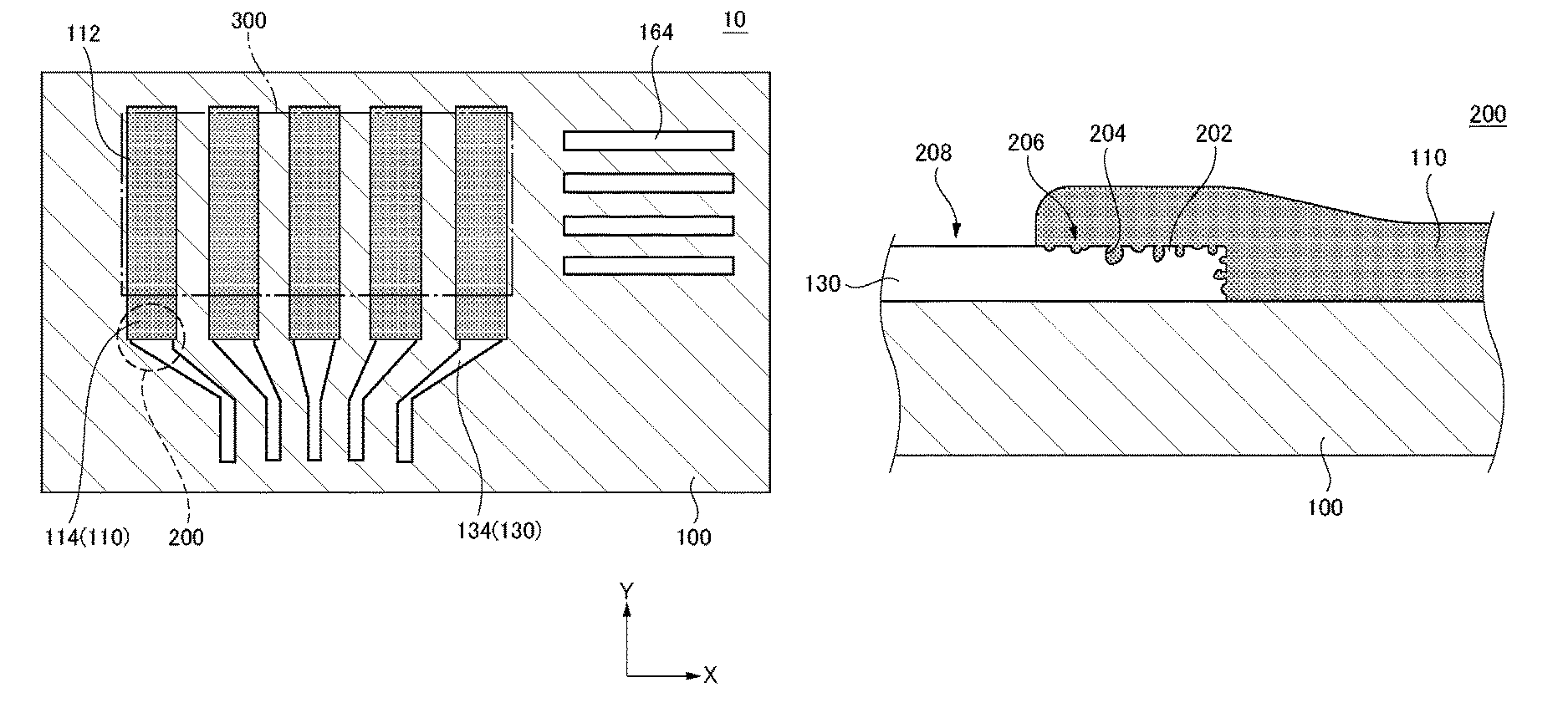

An optical device (10) includes a joining structure in which a first conductive film (110) and a second conductive film (130) are joined to each other. The first conductive film (110) that constitutes the joining structure is constituted by a conductive material. The second conductive film (130) that constitutes the joining structure is constituted by a metal material. A part of the second conductive film (130) comes into contact with the first conductive film (110). A plurality of concave portions are provided in a contact surface of the second conductive film (130) which comes into contact with the first conductive film (110). The contact surface has a surface roughness greater than a surface roughness of a non-contact surface of the second conductive film (130) which does not come into contact with the first conductive film (110).
