Method of pressure testing a plugged well
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2017
Issued Date -
N/A
app pub date -
Jan 31, 2013
filing date -
Jan 31, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

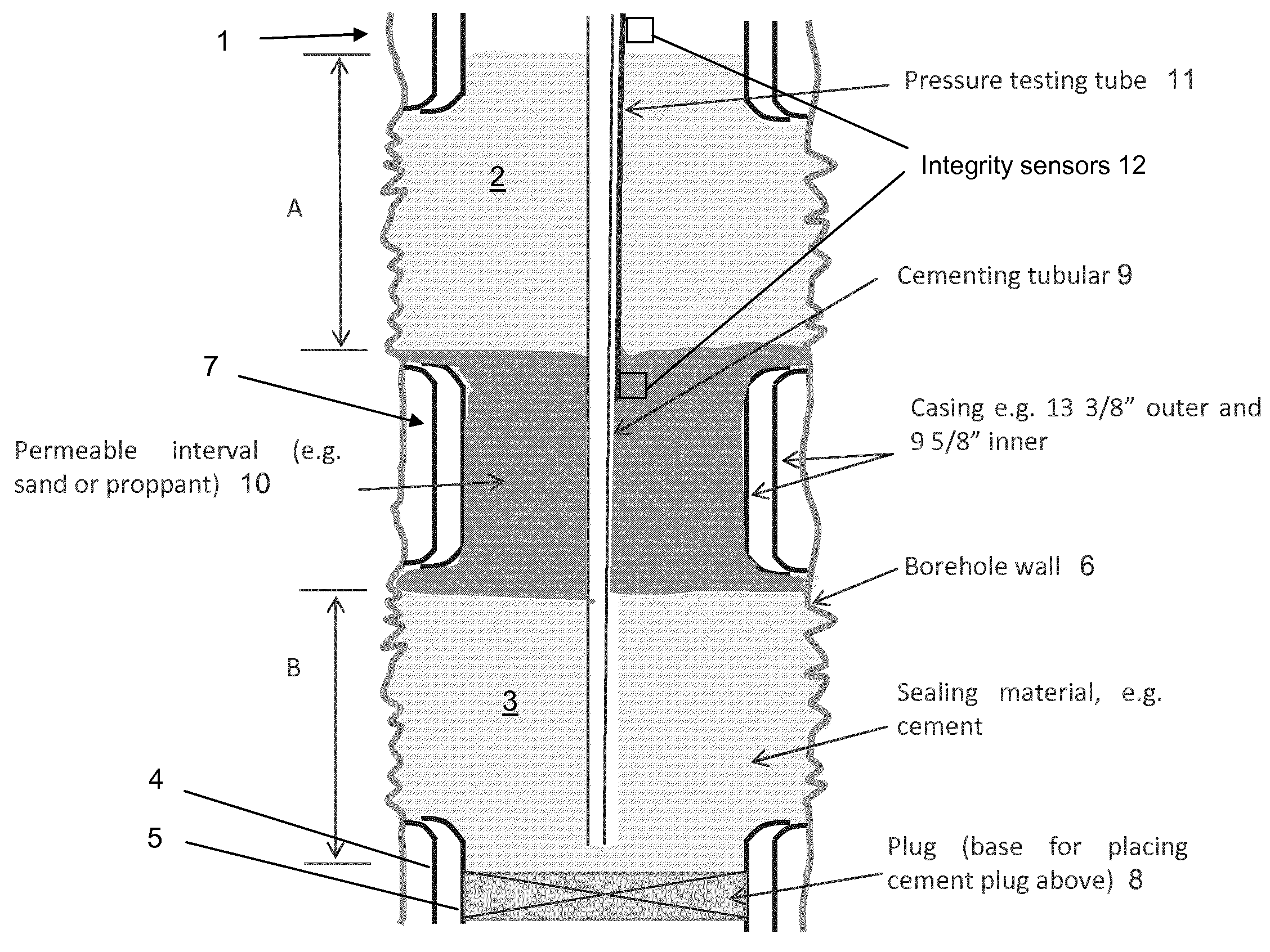

A method of plugging a well extending into a hydrocarbon bearing formation facilitates temporary or permanent abandonment of the well. The method includes forming two or more plugs within the well, the plugs being formed at longitudinally spaced apart locations whilst providing a fluid communication path from a region above the topmost plug to the or each space between adjacent plugs. This configuration facilitates pressure testing of one or more of the plugs by conducting fluid through said path.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2013 Application Filing Year
- E21B Class
- 3688 Applications Filed
- 3292 Patents Issued To-Date
- 89.27 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E21B Class
- 11.26 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2029 |
