Recessed door hinge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2017
Grant Date -
Feb 2, 2017
app pub date -
Jul 29, 2016
filing date -
Jul 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

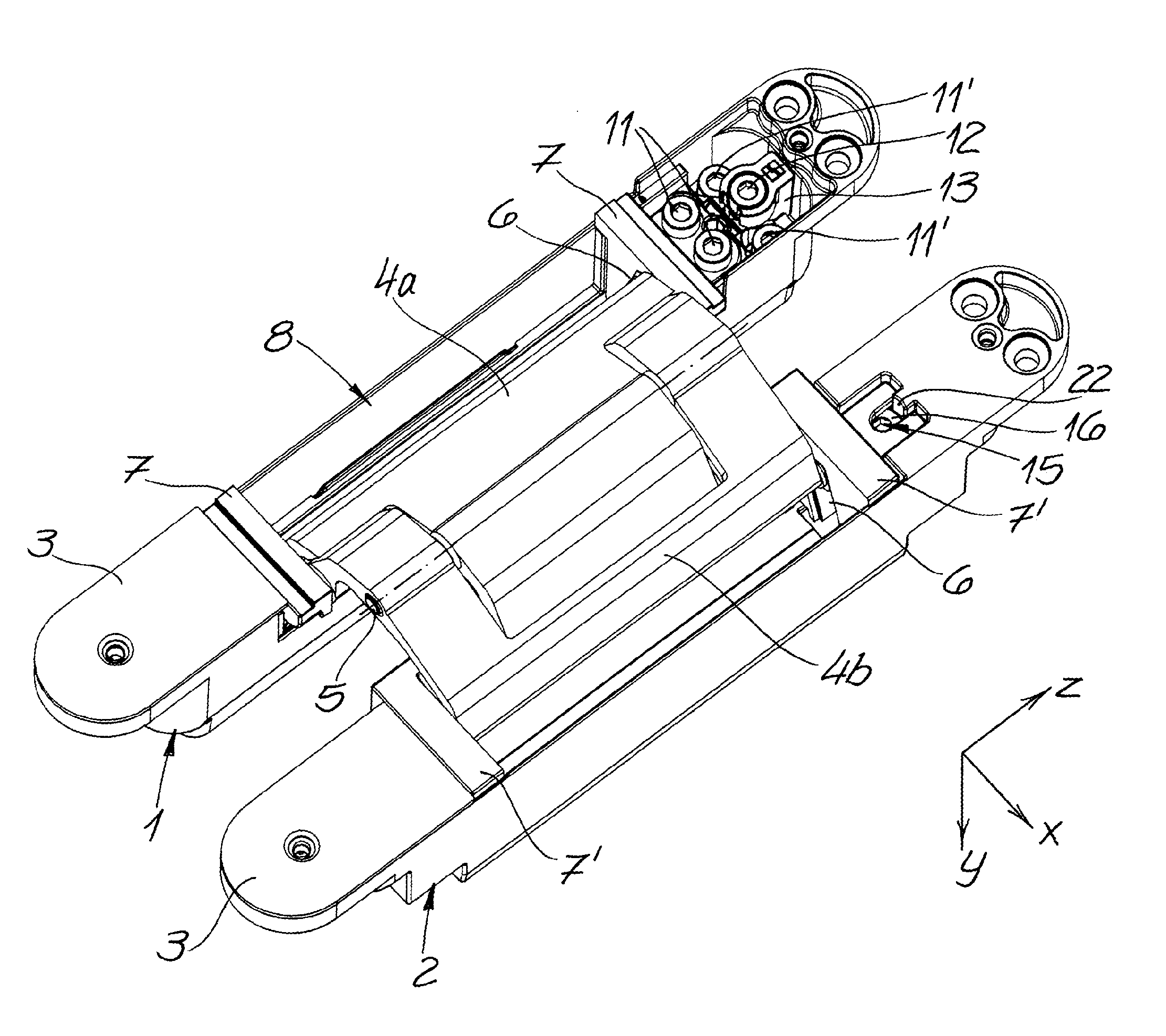

A hinge for recessed installation between a door frame and a door panel that has first and second housings adapted for recessing in the door frame and an edge of the door panel, a pair of links having ends pivoted in the housings and pivoted together about a vertical axis extending in a vertical direction perpendicular to mutually perpendicular first and second horizontal directions, and two supports in the second housing in which the respective ends of the links are pivoted. A vertical connector body to which the supports are fixed is limitedly vertically movable in the first housing along with the supports and links. Respective pairs of guide faces on the connector body spaced apart in the vertical direction flank each of the supports.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- E05D Class
- 529 Applications Filed
- 382 Patents Issued To-Date
- 72.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- E05D Class
- 21.57 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2029 |
