Method for the diagnosis of the offset of the resolver of an electric machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2017
Issued Date -
N/A
app pub date -
Aug 11, 2015
filing date -
Aug 11, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

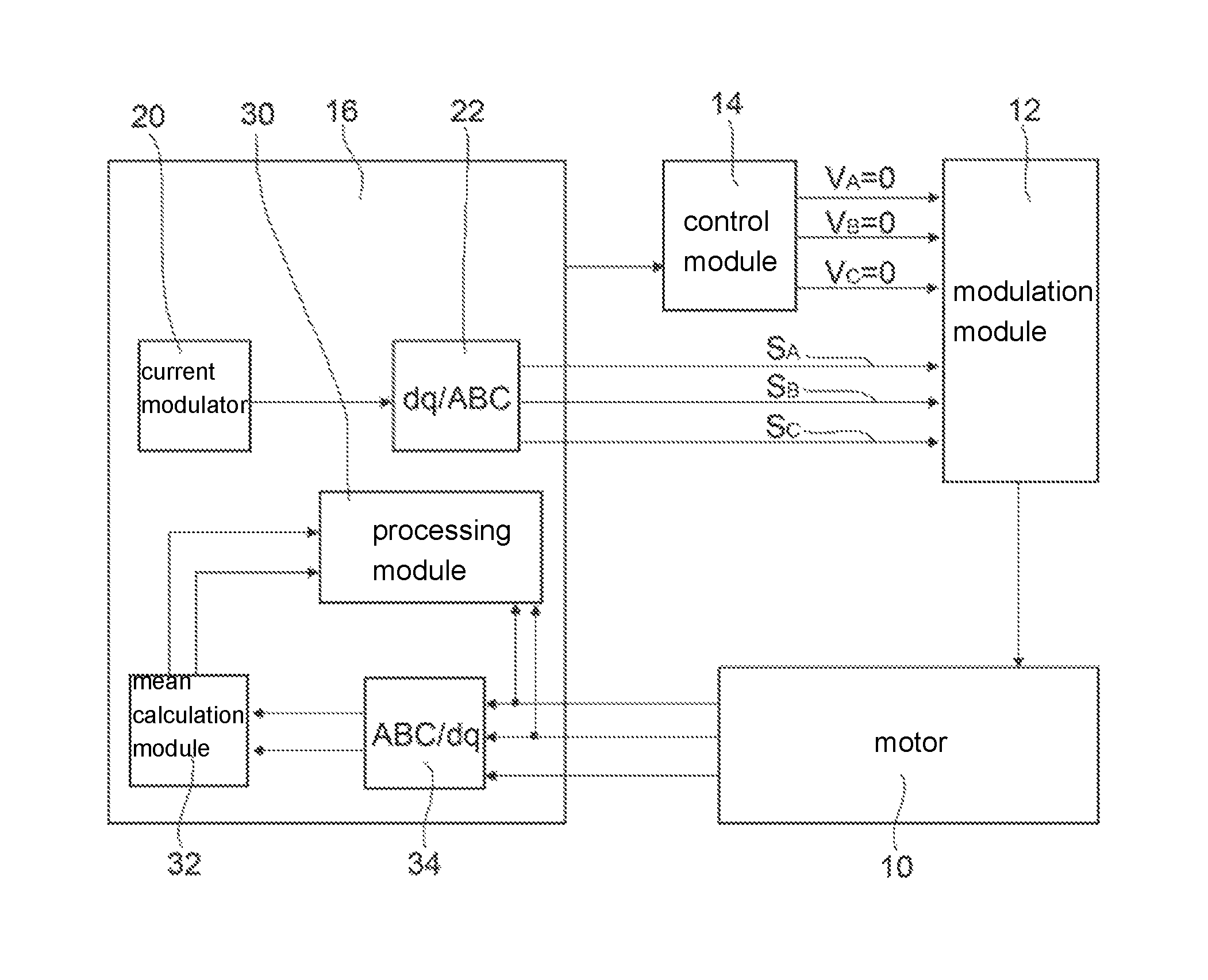

A method for the diagnosis of the offset of the resolver of an electric motor, comprising acquiring a predetermined offset of a resolver associated with the electric motor; in a first transient, supplying an excitation current to the phases of the electric motor. As a consequence of the excitation current, a current established on the axis d of minimum reluctance and a current established on an axis q in phase quadrature with respect to the axis of minimum reluctance are determined. The correctness of the offset of the resolver is diagnosed if the current established on the axis d in the first transient is higher than the current established on the axis d in the second or third transient, and if the current established on the axis q in the first transient is lower than the current established on the axis q in the second or third transient.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2029 |
