Grilling rack
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2017
Issued Date -
N/A
app pub date -
Dec 30, 2014
filing date -
Jun 2, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

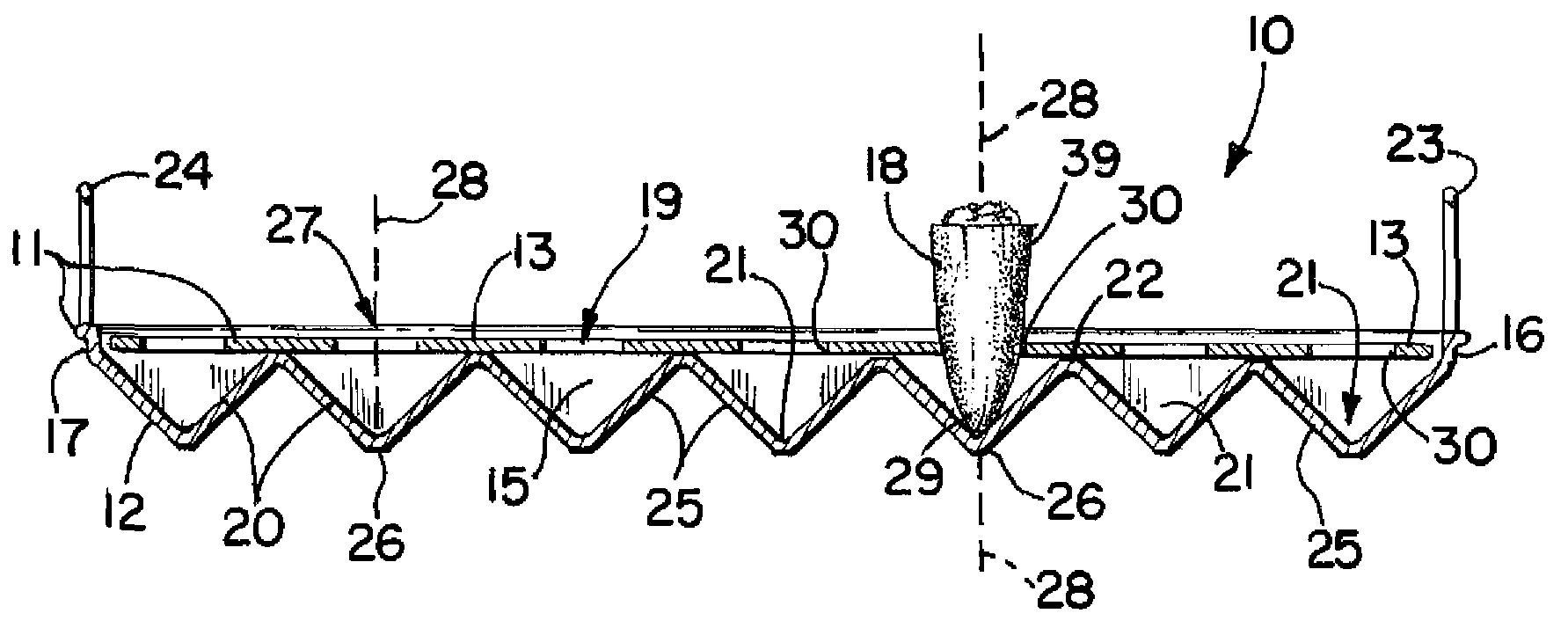

A food grilling rack provides a frame defined by a plurality of connected side walls forming a closed geometric shape. The frame includes a lower corrugated sheet that provides multiple troughs, each trough having a lowest portion. The lower sheet is attached to at least some of the side walls. An upper sheet of material is supported (e.g., removably) above the sheet of corrugated material. There are a plurality of openings in the upper sheet of material, each opening being vertically aligned with a lowest portion of a trough. In one embodiment, the frame includes a pair of flanged members attached to a lower corrugated sheet that provides multiple troughs, each trough having a lowest portion. A sheet with openings slides into the frame aligning the openings with the lowest part of the trough.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A47J Class
- 1022 Applications Filed
- 823 Patents Issued To-Date
- 80.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A47J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 21, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 21, 2029 |
