Scaleable RF tuned low noise amplifier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Grant Date -
Jan 5, 2017
app pub date -
Nov 19, 2015
filing date -
Jul 1, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

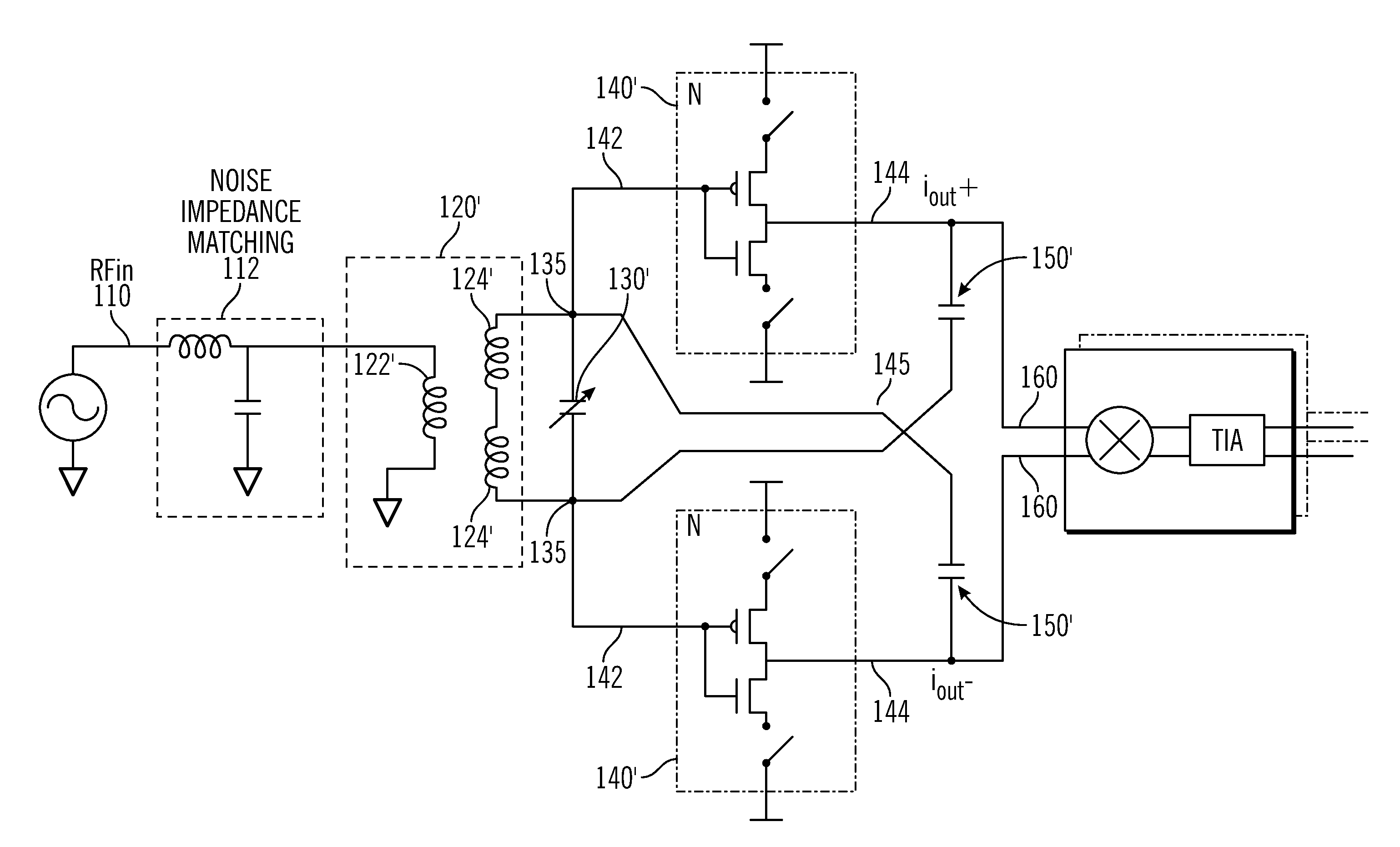

A power-efficient neutralized signal amplifier for use in ultra-low power narrowband receiver applications. A neutralized signal amplifier having: an impedance transformation element coupled to an amplifier input and having a differential output; a gain cell, having a differential input and a differential output, the differential input coupled to the differential output of the impedance transformation element and the differential output coupled to the amplifier output; and a neutralization element coupled to the gain cell differential output and cross-coupled to the differential output of the impedance transformation element, where the coupling of the neutralization element to the differential output of the impedance transformation element provides that the input impedance of the neutralized signal amplifier is substantially determined by reflected resistive parasitics of the impedance transformation element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H03F Class
- 1049 Applications Filed
- 949 Patents Issued To-Date
- 90.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
