Waste heat recovery system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
Feb 2, 2015
filing date -
Feb 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

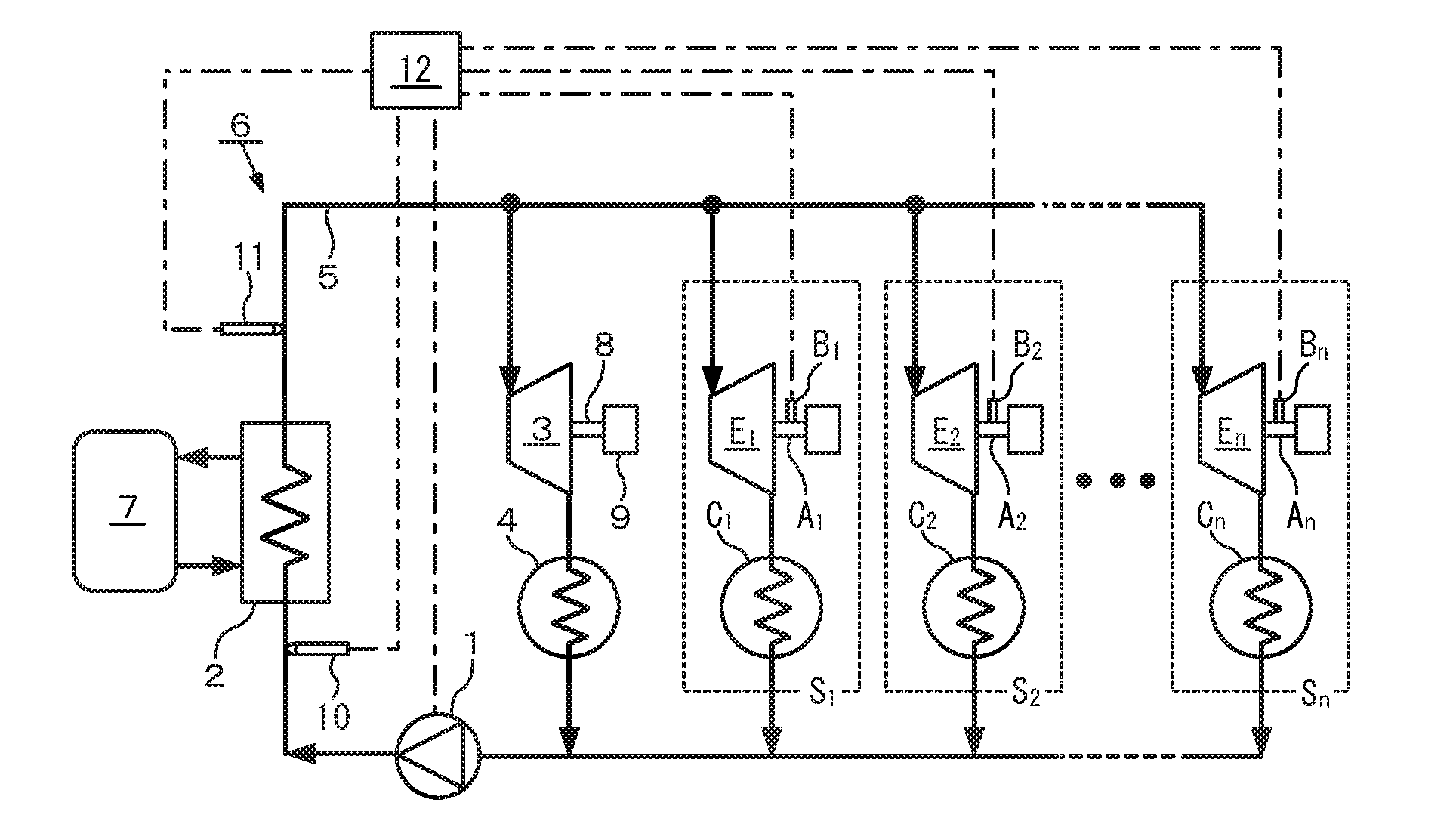

Connected in parallel to an expander and a condenser of a Rankine cycle are n sets each including a different expander and a different condenser. Devices are provided for stopping operations of the expanders in sets connected in parallel, and a pressure sensor and a temperature sensor are installed respectively in an inlet and outlet of an evaporator. An electronic control unit sets or releases at least one of the operation stopping devices such that a measured value of the temperature sensor reaches a prescribed temperature value which is equal to or less than a thermal decomposition temperature of a refrigerant and which is set in advance, and the electronic control unit controls a rotational speed of a refrigerant pump such that a measured value of the pressure sensor reaches a prescribed pressure value set in advance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02J Class
- 4445 Applications Filed
- 3538 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
