Multi-feed antenna optimized for non-50 Ohm operation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Grant Date -
N/A
app pub date -
Mar 18, 2015
filing date -
Mar 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

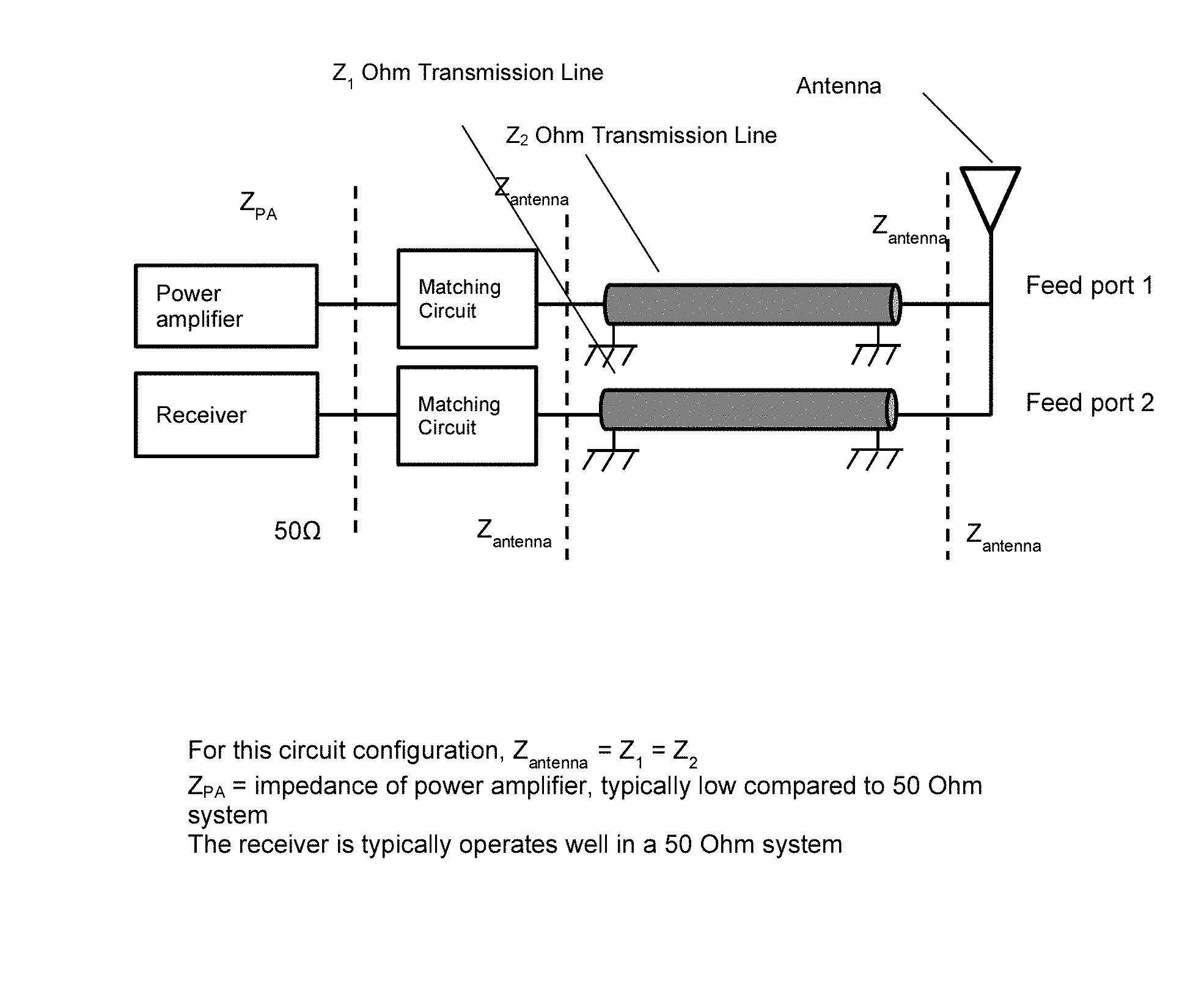

A multi-feed antenna is described where the antenna is optimized for the natural impedance state per frequency band. Multiple feed points are accessed as a function of frequency and use case to provide a feed port that is operating at the natural impedance state for the antenna structure. Impedance transforming circuits can be applied to the feed point to form impedance matching circuits to transform the antenna impedance to a characteristic impedance of the system or circuit interfacing with the antenna. The impedance transforming circuits can be eliminated and the RF circuitry interfacing with the antenna can be configured to operate at the natural frequency of the antenna.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H01Q Class
- 13.07 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
