Filtering device suitable for being coupled to a suction turbine for sucking up excrement and vacuum cleaner including said filtering device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
Dec 10, 2012
filing date -
Dec 26, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

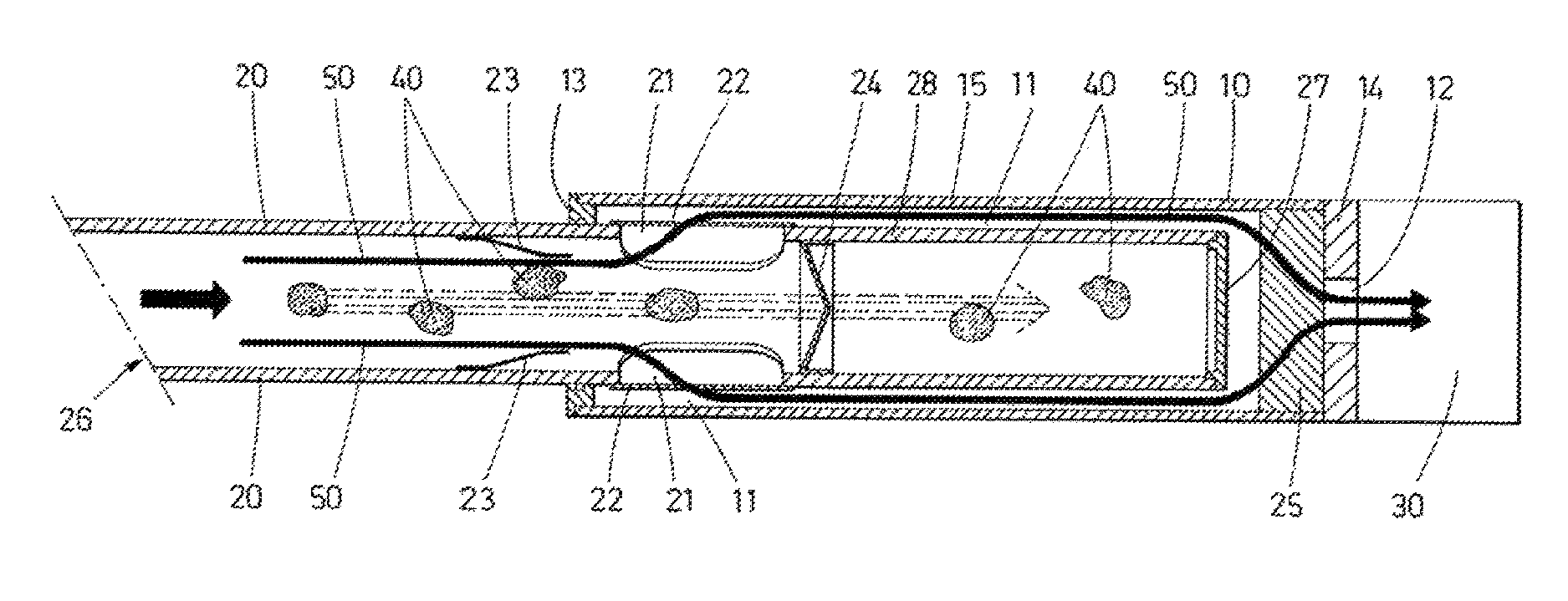

The object of the invention is a filtering device that can be coupled to a suction turbine (30) of the type used to suction pet faeces. Another object of the invention is the vacuum incorporated in said filtering device. The filtering device comprises an outer body (10) and a cartridge (20) that are partially disposed in the interior of the outer body (10) comprising an open front end (26) for suctioning the faeces (40) and a closed rear end (27), at least one opening (21) disposed on the surface (28) for the passage of the air flow (50) from the interior of the cartridge (20) to the interior of the outer body (10) and a filtering material (22).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- E01H Class
- 73 Applications Filed
- 64 Patents Issued To-Date
- 87.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E01H Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
