Shut-off valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
May 4, 2015
filing date -
May 9, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

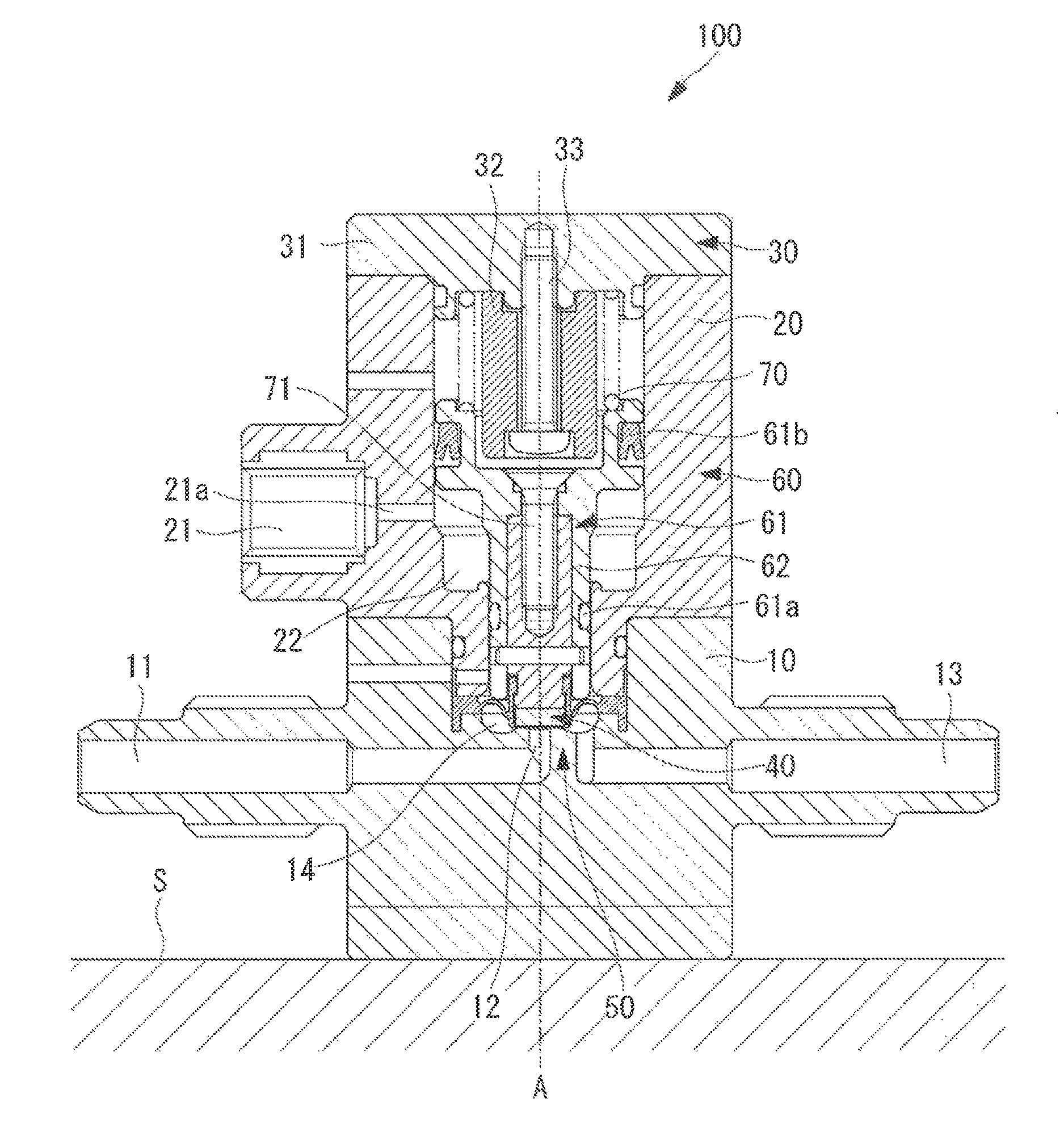

There is provided a shut-off valve including: a valve body part having a valve body surface; a valve seat part provided around an inlet, and having a valve seat surface disposed at a position opposite to the valve body surface; and a moving mechanism that is connected to the valve body part, and moves the valve body part in a direction of an axis to switch to either a shut-off state or a circulation state, wherein the valve seat part has an endless inner peripheral side projection and an endless outer peripheral side projection that project from the valve seat surface toward the valve body surface along the axis, and the valve body part has a diaphragm forming the valve body surface, and an elastic member disposed on a back surface of the diaphragm.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6333052 | May 09, 2014 |
| EP | B1 | EP2942552 | Apr 28, 2015 |
| KR | B1 | KR102252892 | Apr 30, 2015 |
International Classification(s)
- 2015 Application Filing Year
- F16K Class
- 1801 Applications Filed
- 1435 Patents Issued To-Date
- 79.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
