Fluid-filled vibration-damping device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
Jan 13, 2016
filing date -
Mar 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

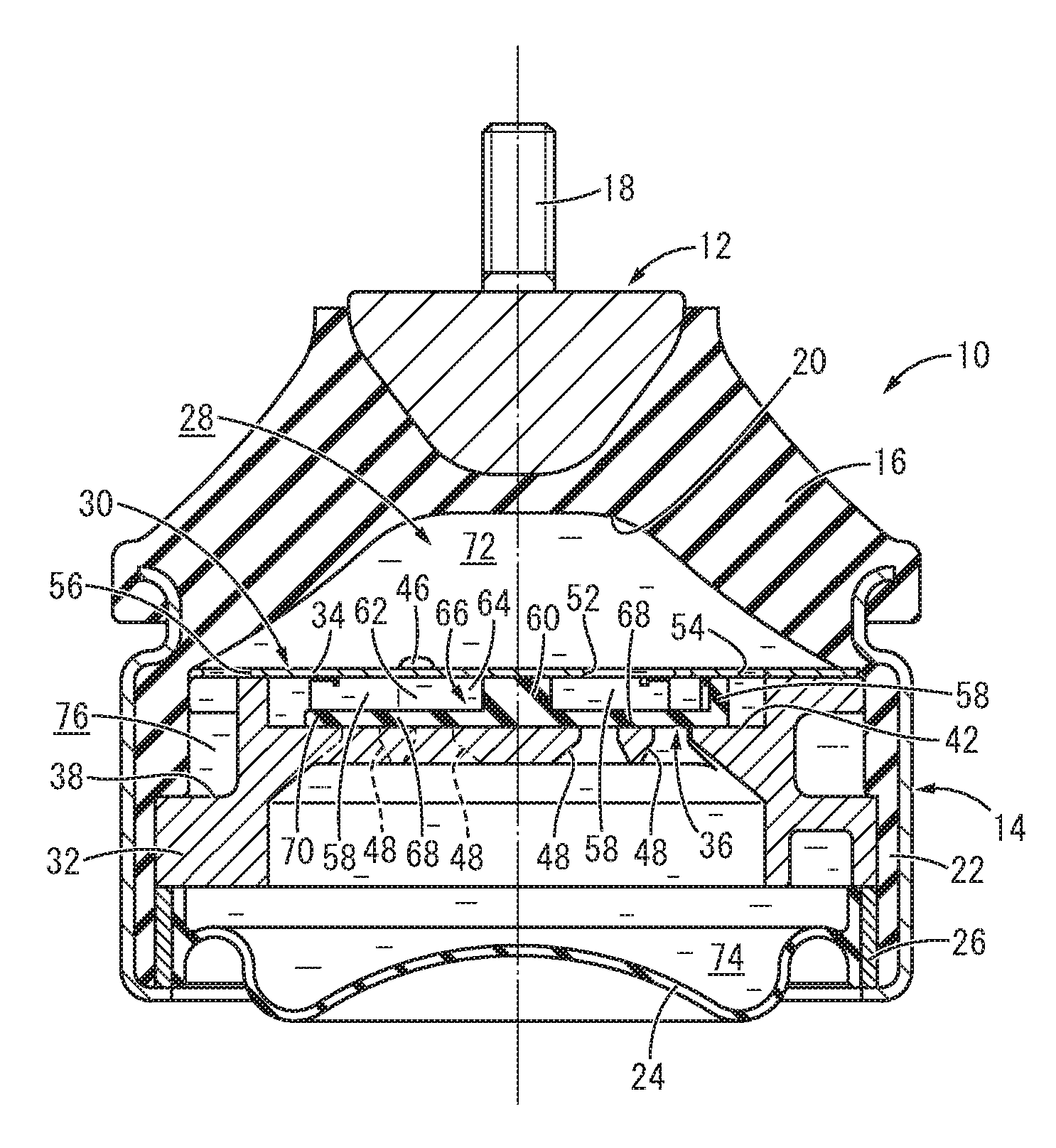

A fluid-filled vibration-damping device including two chambers partitioned by a partition member and mutually communicated by an orifice passage and a communication passage which is provided at the partition member, with a movable rubber film disposed in the communication passage so that each pressure of the chambers is applied to the respective face of the movable rubber film, wherein the movable rubber film includes a thick-walled outer peripheral retaining part formed at its outer rim and clamped by the partition member and reinforcing crosspieces projecting on its face and extending inward from the outer peripheral retaining part to mutually intersect, and a width dimension of at least one of the reinforcing crosspieces is made small in a vicinity of the intersection part to provide a narrow part by which the movable rubber film has a low-spring area in the vicinity of the intersection part.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16F Class
- 1075 Applications Filed
- 798 Patents Issued To-Date
- 74.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16F Class
- 30.41 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
