Subsea connection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
Jun 18, 2014
filing date -
Jun 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

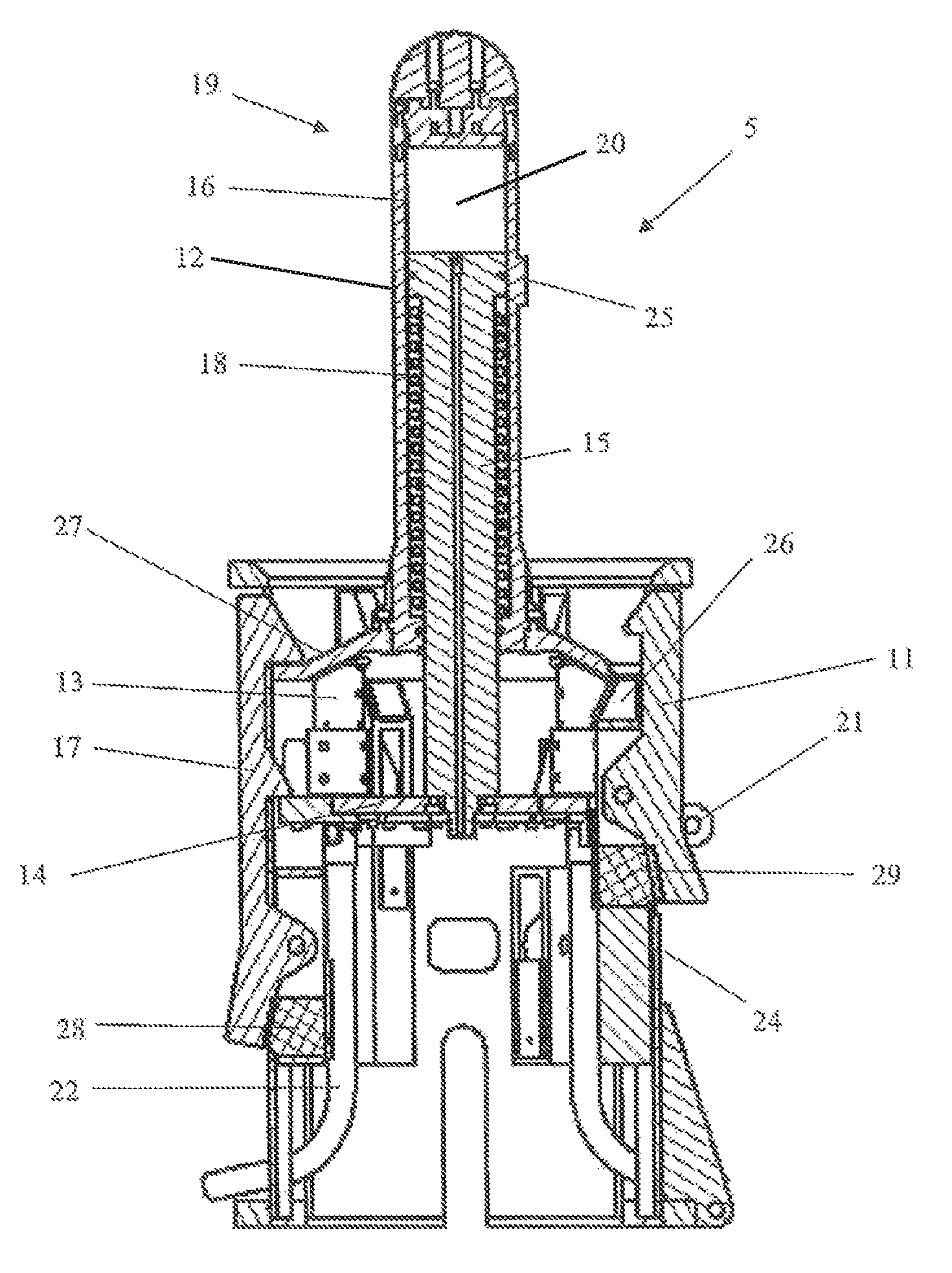

A subsea connection includes an umbilical termination head having a termination head housing and at least one first connecting line, each of which has a first mating device; a subsea base unit having a base unit housing and at least one second connecting line, each of which has a second mating device that is connectable with a corresponding first mating device; and a locking device for locking the termination head to the subsea base unit. The second mating device is fixed to a stab plate and kept in a retracted position before connection of the termination head with the base unit, and the stab plate and the second mating device are arranged to move relative to the base unit housing during connection.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E21B Class
- 4199 Applications Filed
- 3550 Patents Issued To-Date
- 84.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
