Keyed wafer carrier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
Mar 20, 2012
filing date -
Mar 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

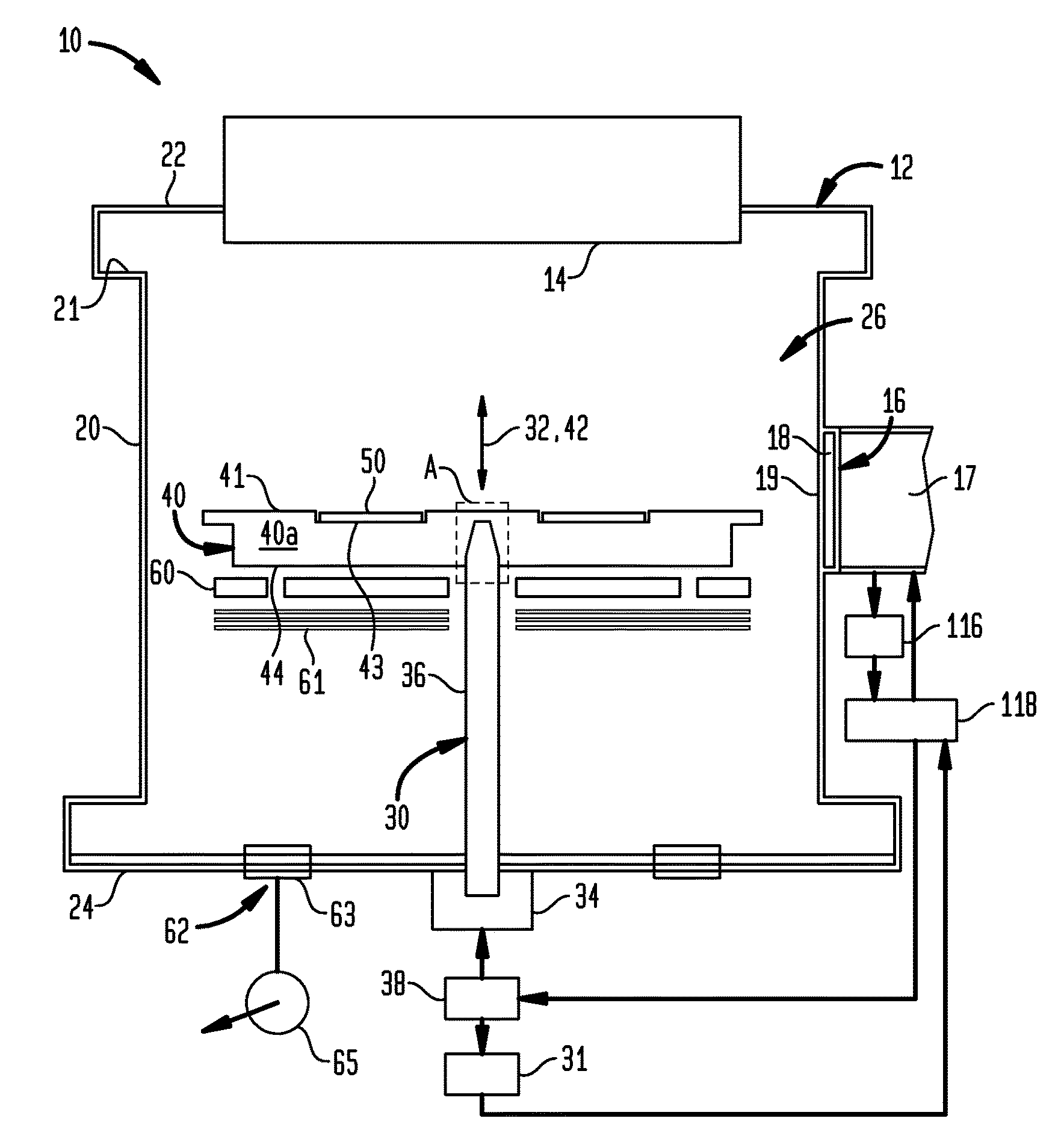

A structure for a chemical vapor deposition reactor desirably includes a reaction chamber having an interior, a spindle mounted in the reaction chamber, and a wafer carrier releasably mounted onto the spindle for rotation therewith. The spindle desirably has a shaft extending along a vertical rotational axis and a key projecting outwardly from the shaft. The wafer carrier preferably has a body defining oppositely-facing top and bottom surfaces and at least one wafer-holding feature configured so that a wafer can be held therein with a surface of the wafer exposed at the top surface of the body. The wafer carrier desirably further has a recess extending into the body from the bottom surface of the body and a keyway projecting outwardly from a periphery of the recess along a first transverse axis. The shaft preferably is engaged in the recess and the key preferably is engaged into the keyway.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- C23C Class
- 1946 Applications Filed
- 1591 Patents Issued To-Date
- 81.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C23C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
