Vented beverage can end having an anti-tension score
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Grant Date -
Jan 28, 2016
app pub date -
Mar 10, 2014
filing date -
Mar 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

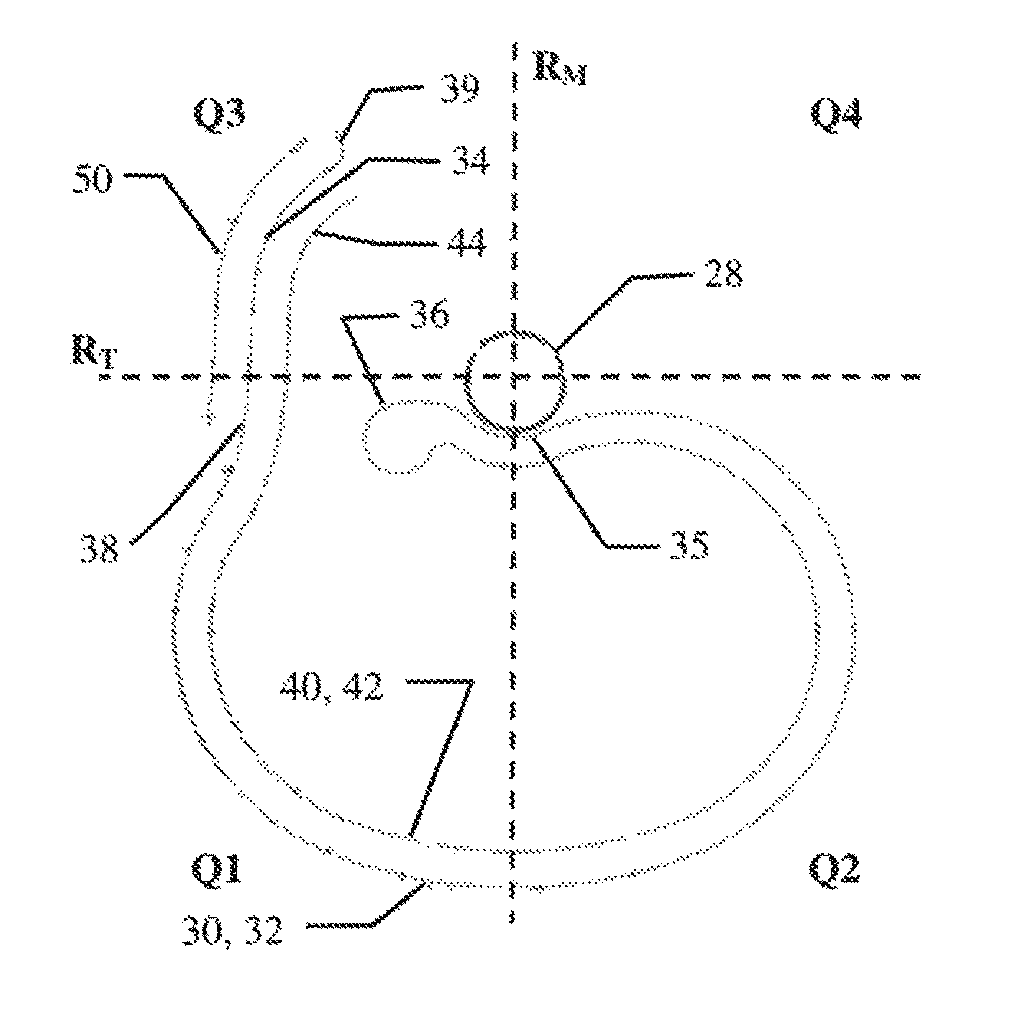

A beverage can end for seaming onto a can body may include a peripheral wall, a center panel (26), a tab (attached to the center panel by a rivet (28), a tear panel (60), a main reference line (Rm), a transverse reference line (R1), and a score (30). The end includes an anti-fracture score (40) proximate a vent score (70). The center panel includes a recess (27), in which the main score, an antifracture score, and (optionally) the anti-tension score (50) are located. The score is configured such that lifting the tab from its horizontal rest position to an intermediate position ruptures the main score portion to pivot the tear panel main portion about the hinge (70) and a second lifting operation or twisting operation of the tab ruptures the main score extension (34).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B65D Class
- 29.01 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
