Trackless dark ride vehicle, system, and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
Aug 7, 2015
filing date -
May 11, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

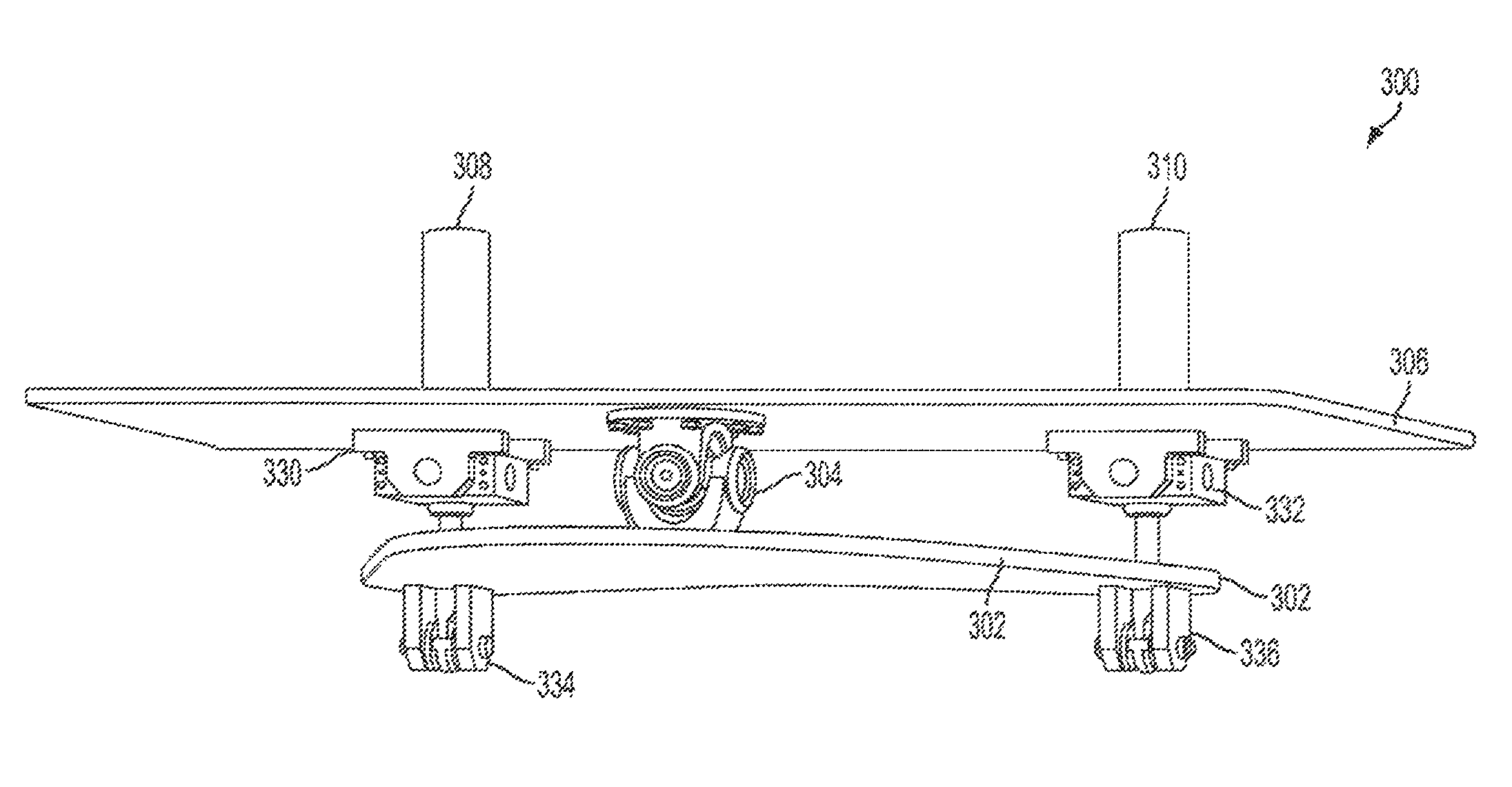

A motion assembly that produces pitch and roll motions includes lower and upper plates. A pivotable coupling having upper and lower shafts extending from its center is coupled between the upper and lower plates. At least two linear actuators are coupled between the plates. Extension and retraction of the actuators pivots the upper plate about the pivotable coupling relative to the lower plate. A vehicle includes two steerable propulsion wheels coupled to a chassis. A lower plate of a pitch and roll assembly, similar to that just described, couples to the chassis via a slew bearing. Seating is coupled to the upper plate. The seating rotates with respect to the chassis via controlled rotation of the slew bearing with reference to the chassis. The seating can be rotated to point in any direction with respect to the chassis regardless of the direction the steerable propulsion wheels move the chassis.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16M Class
- 1190 Applications Filed
- 816 Patents Issued To-Date
- 68.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
