Laminated composite interior part
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Issued Date -
N/A
app pub date -
May 15, 2013
filing date -
May 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

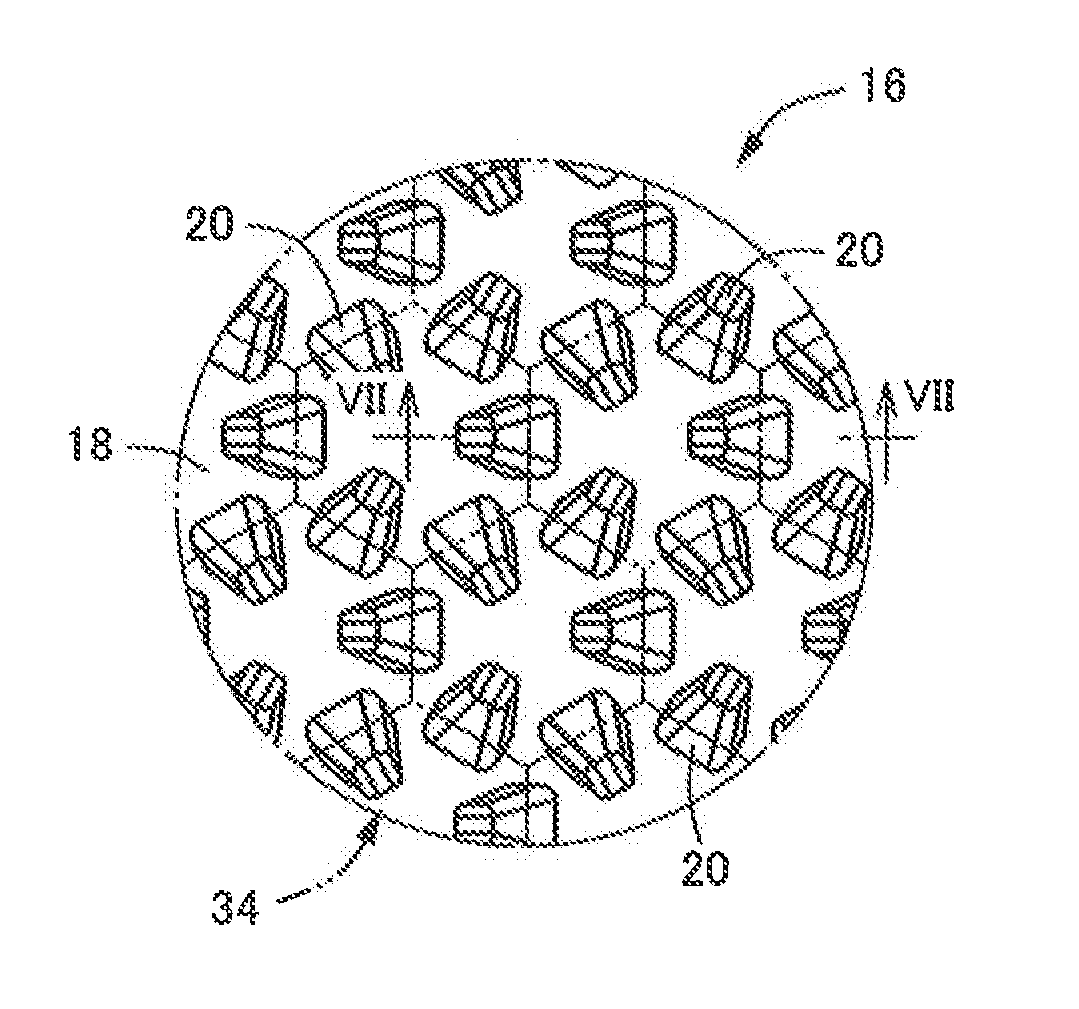

Numerous fine projections (20) are formed interspersed on a plate-shape member (18), and the neutral plane (S) of each fine projection (20) is inclined at an inclination angle α to the normal line (O) such that the contact center (Q) does not overlap with the base part in the plane direction of the surface (22), so when a pressing load (F) is applied, the moment acting on the fine projections (20) is large, and the fine projections (20) easily deform to bend in the respective inclination direction. By this means, the tactile softness (cushion properties) are improved by preventing the fine projections (20) from undergoing simple compression deformation in the axial direction, and stick-slip due to friction between the fine projections (20) and the surface (22) is avoided, making it possible to obtain a smooth and stable tactile softness.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
