Feedback/registration mechanism for ultrasound devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2017
Grant Date -
Apr 17, 2014
app pub date -
Oct 11, 2013
filing date -
Oct 12, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

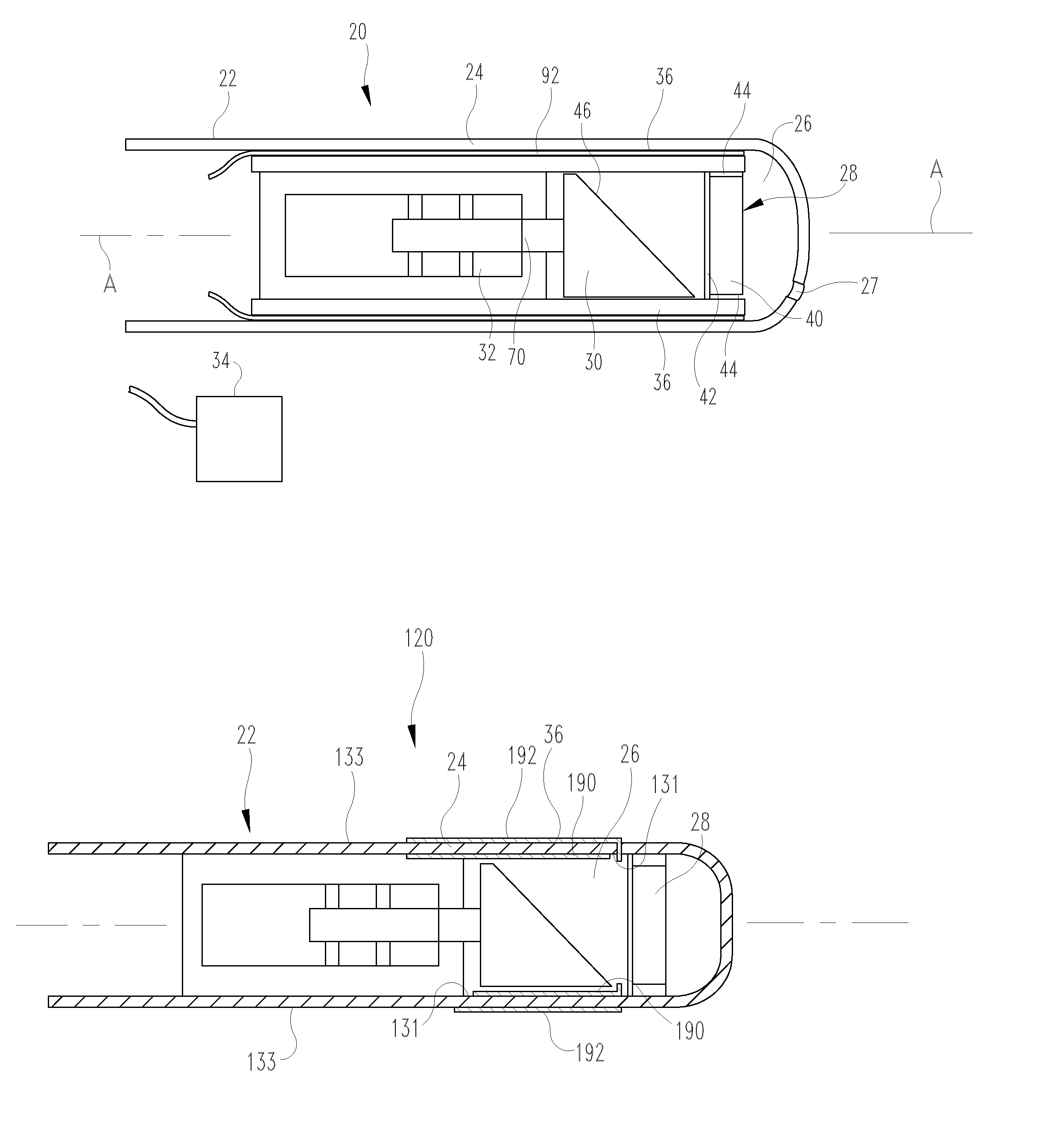

Among other things, there is disclosed structure and methods for registering images obtained through internal (e.g. intravascular) ultrasound devices. Embodiments of a device with a rotating ultrasound beam is provided, with a wall of the device being anisotropic in ultrasound passage. As examples, a cable opaque to ultrasound is attached along the wall of the device, so that the ultrasound beam at the location of the cable is blocked, reflected or scattered. As another example, a thin film of metallic material is placed on or in the wall to allow a portion of the beam to be blocked or attenuated. The imaging system recognizes the changes to the signals made by the anisotropic wall, and registers successive images according to those changes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G10K Class
- 402 Applications Filed
- 338 Patents Issued To-Date
- 84.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 14, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 14, 2029 |
