Microphone package
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Jan 26, 2017
filing date -
Oct 25, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

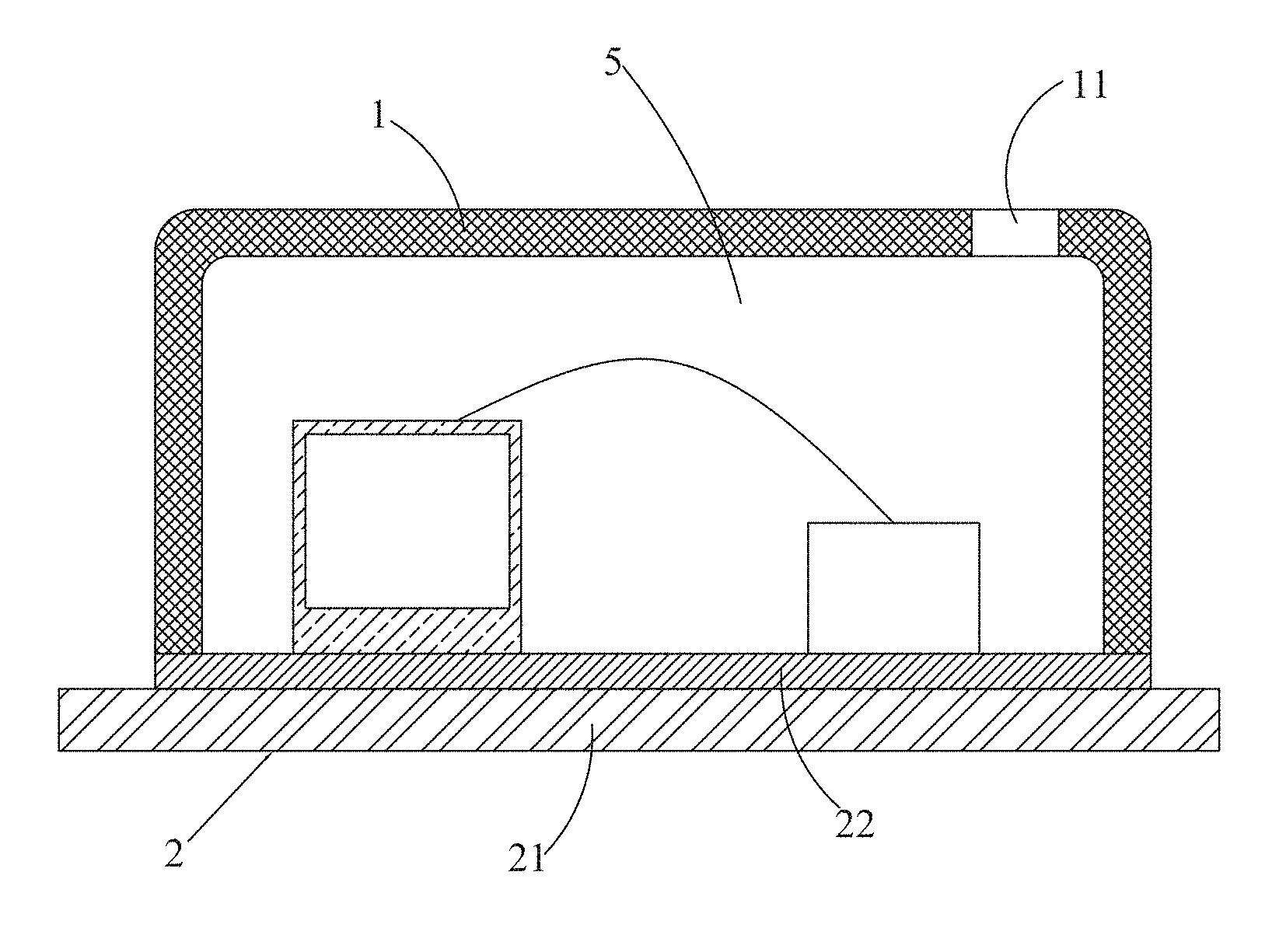

A microphone package includes a housing; a control circuit chip accommodated in the housing; a micro-electromechanical chip accommodated in the housing; and a circuit board forming an accommodation space with the housing. The circuit board includes a substrate, a rigid conductive layer disposed on the substrate and a plurality of conductive pads on the substrate for connecting to the control circuit chip. The micro-electromechanical chip and the control circuit chip are mounted on the rigid conductive layer, and the rigid conductive layer is provided with a number of isolation holes for receiving the conductive pads.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04R Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
