Communication system using low bandwidth wires
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Nov 22, 2013
filing date -
Oct 22, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

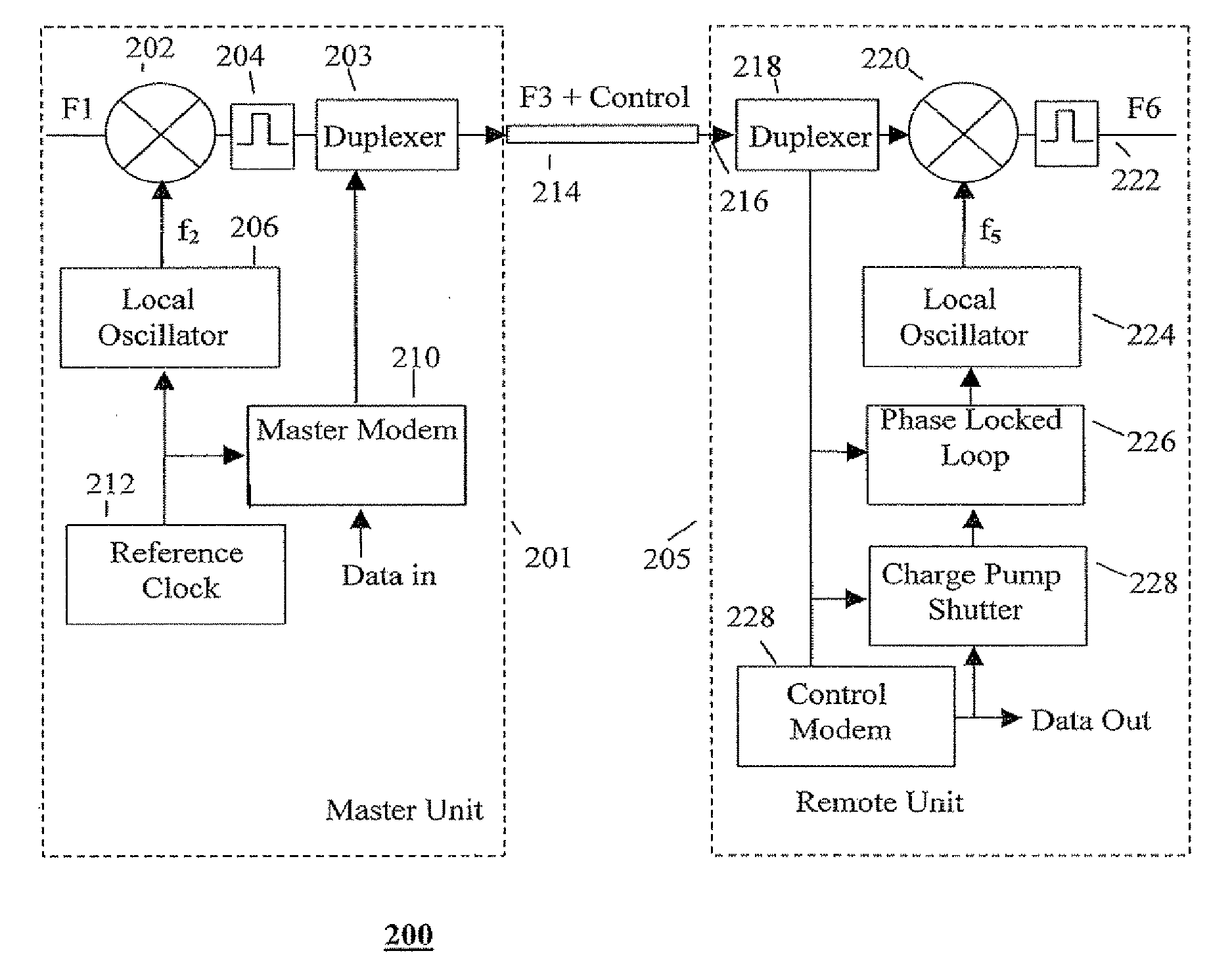

A high frequency signal is down-converted into an intermediate frequency signal, transmitted over a limited bandwidth medium from a master unit to a remote unit and up-converted back into its original high frequency at the remote unit. The up-conversion is aided by reconstruction of a reference signal embedded at the master unit as a carrier for a management signal which is transmitted to the remote unit through the same limited bandwidth medium together with the intermediate frequency signal. The reference signal is reconstructed using a phase locked loop which includes a charge pump and is kept stable during intervals between bits and messages by a charge pump shutter.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H04L Class
- 23397 Applications Filed
- 19833 Patents Issued To-Date
- 84.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04L Class
- 11.47 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
