Communications bandwidth enhancement using orthogonal spatial division multiplexing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Mar 9, 2015
filing date -
Mar 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

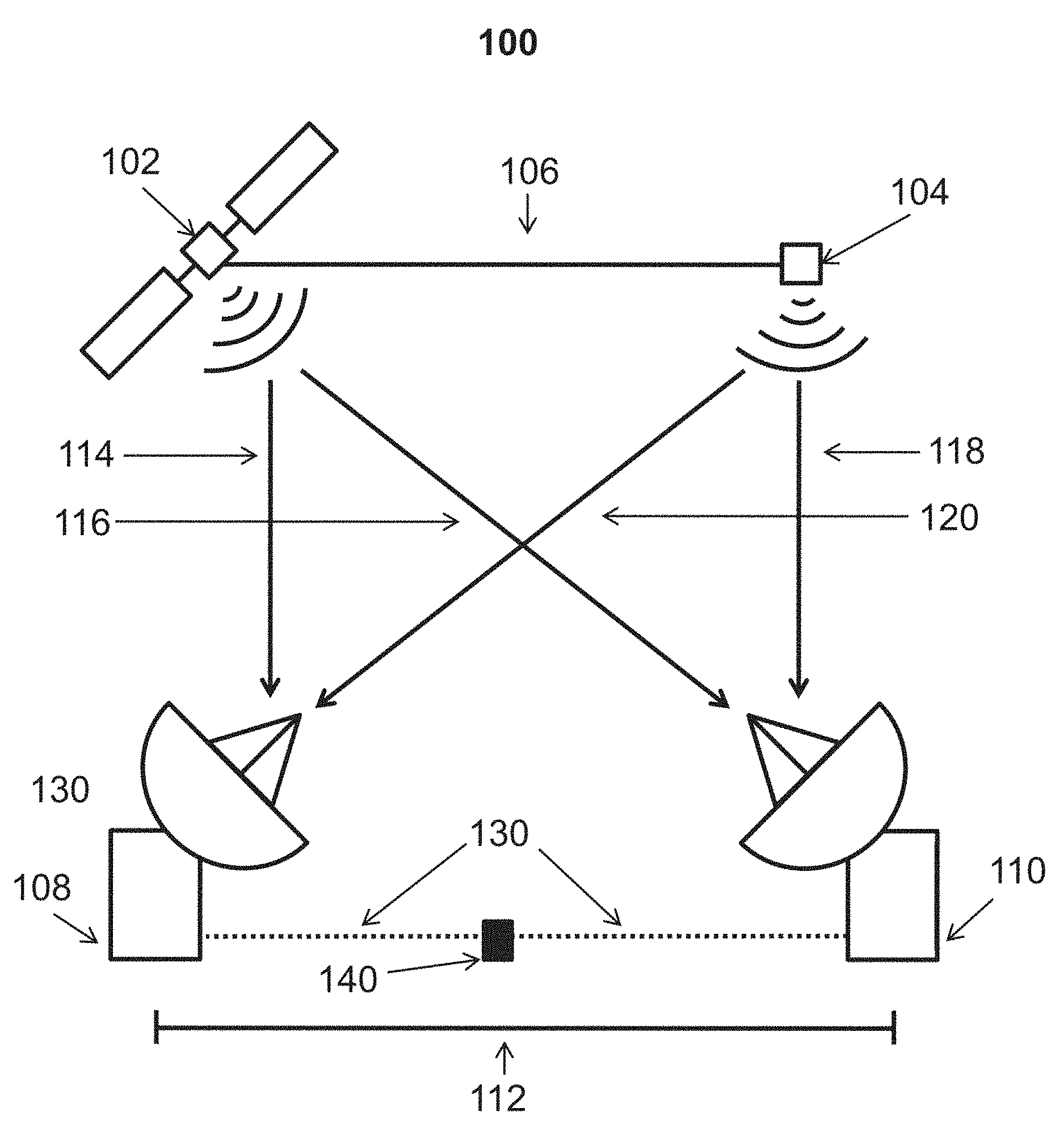

Systems and methods are described herein for communications bandwidth enhancement using Orthogonal Spatial Division Multiplexing (OSDM). For example, large sparse antenna arrays may be able to distinguish between signals emitted by multiple nearly collocated antennas, even if the signals have the same frequency, polarization, and coverage. Thus, the use of a large sparse antenna array may be able to resolve/isolate individual antennas on a single platform, allowing for OSDM, analogous to Orthogonal Frequency Divisional Multiplexing (OFDM). Using OSDM, multiple antennas on the same vehicle are able to reuse the same frequencies/polarizations without interference, thereby increasing spectrum availability while still providing the same transmitter power spectral density and total RF power emission.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04B Class
- 9124 Applications Filed
- 7771 Patents Issued To-Date
- 85.18 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04B Class
- 13.65 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
