Stamped hotline clamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Jun 9, 2016
filing date -
Jun 10, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

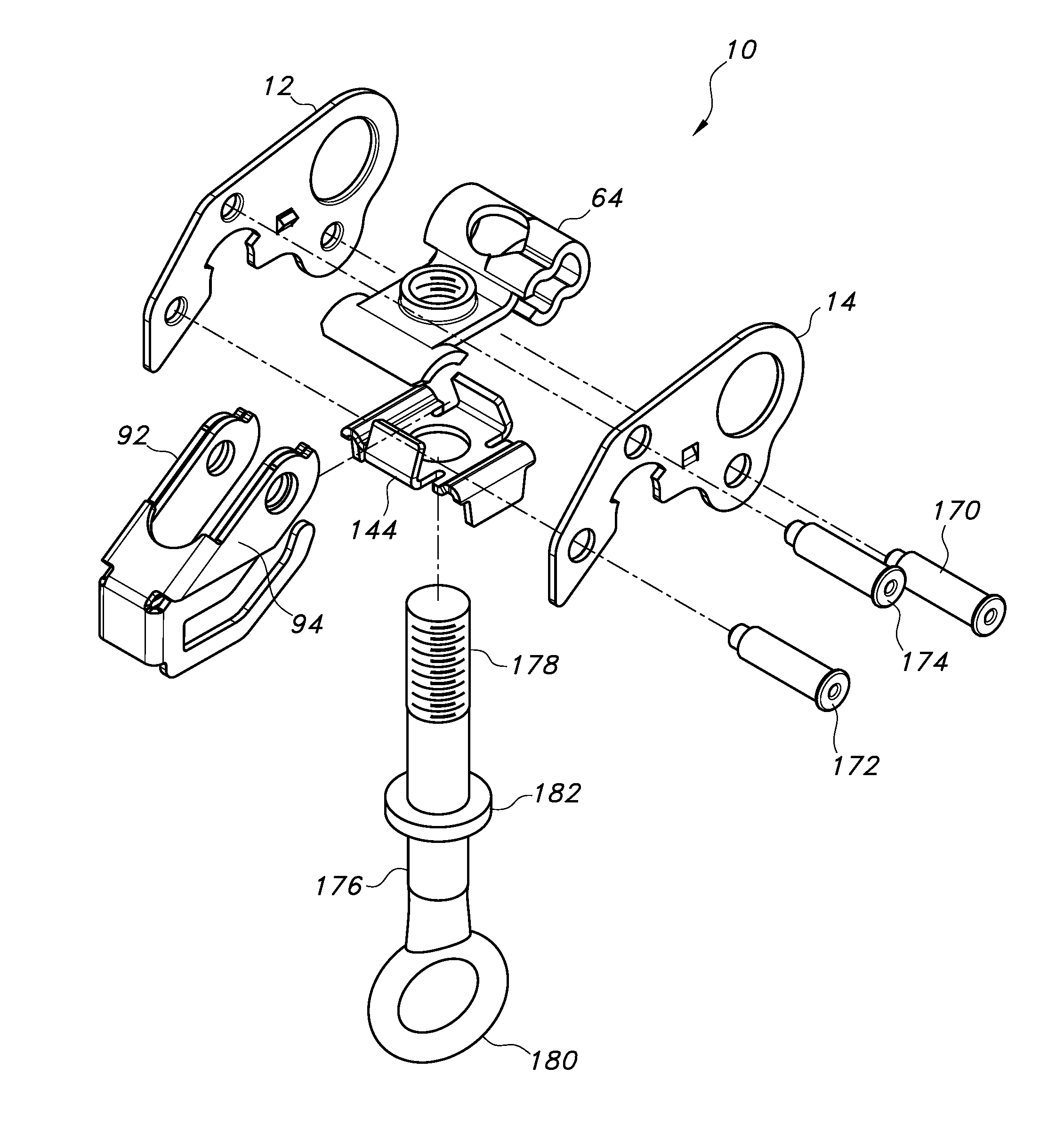

A stamped hotline clamp having two parallel top side walls, two parallel bottom side walls, a hinge pin, a conductor plate, a saddle and an elongated metal shaft. The hinge pin pivotably connects the top side walls to the bottom side walls on one end. At the other end, a standoff separates and connects the top side walls and a contact plate connects the bottom side walls. The bottom side walls pivotably contact the saddle. The conductor plate extends between the top side walls and pivotably contacts the contact plate when the clamp is closed. The top end of the shaft is inserted through an opening in the saddle and threaded into an aperture in the conductor plate. Rotating the shaft in a clockwise direction closes the clamp and rotating the bottom end of the shaft in a counter-clockwise direction opens the clamp.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01R Class
- 3537 Applications Filed
- 3049 Patents Issued To-Date
- 86.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- H01R Class
- 16.47 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
