Thermally-assisted magnetic recording head including a main pole and a plasmon generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Jan 20, 2015
filing date -
Jan 20, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

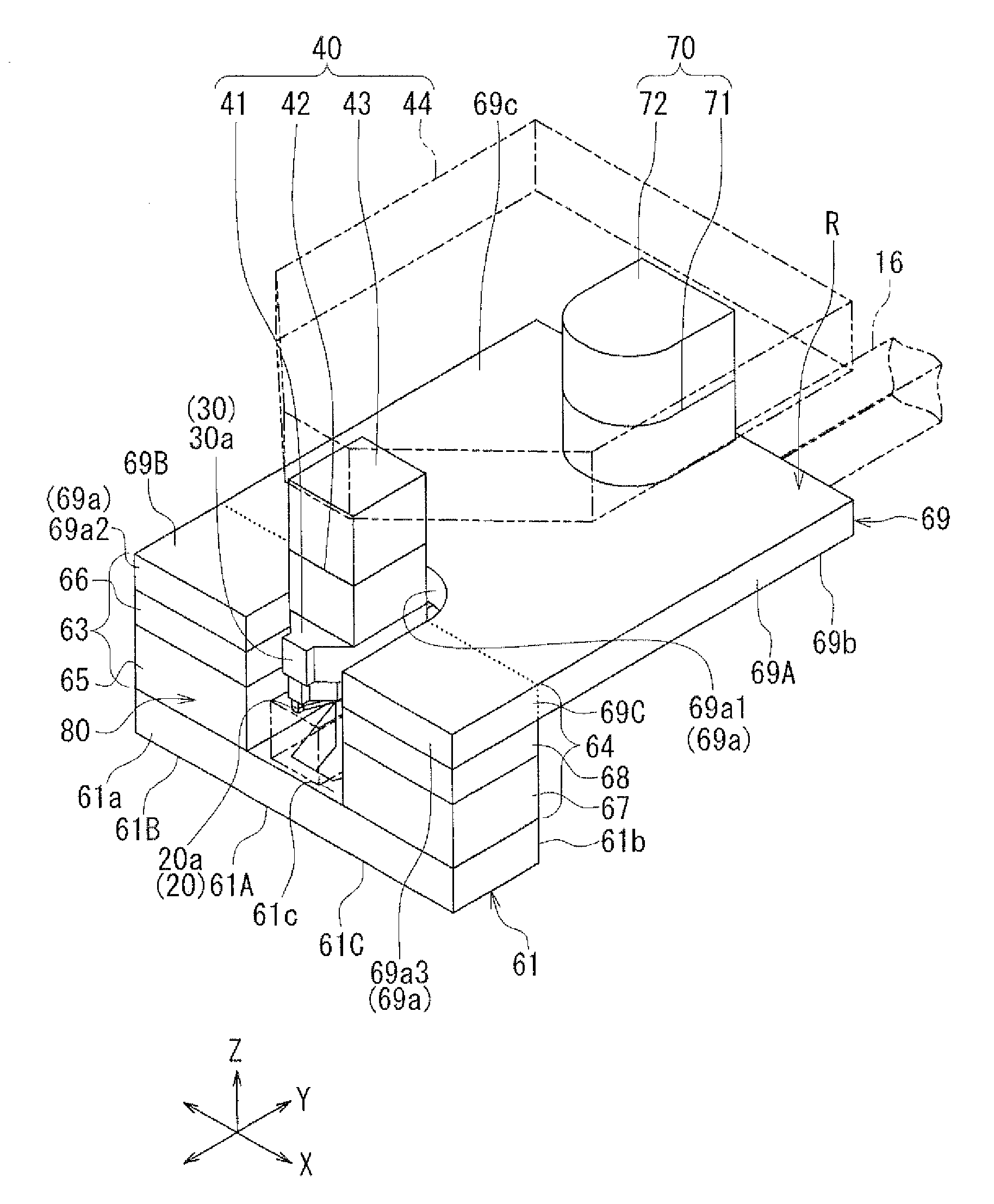

A thermally-assisted magnetic recording head includes a main pole and a plasmon generator. The main pole has a front end face located in the medium facing surface. The plasmon generator has a near-field light generating surface located in the medium facing surface. The front end face of the main pole includes a first end face portion and a second end face portion. The second end face portion is located farther from the near-field light generating surface than is the first end face portion, and is greater than the first end face portion in width in the track width direction. The first end face portion and the near-field light generating surface are equal in width.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G11B Class
- 20.67 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
