Hollow core waveguide with optimized contour
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
May 5, 2016
app pub date -
Jun 4, 2014
filing date -
Jun 10, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

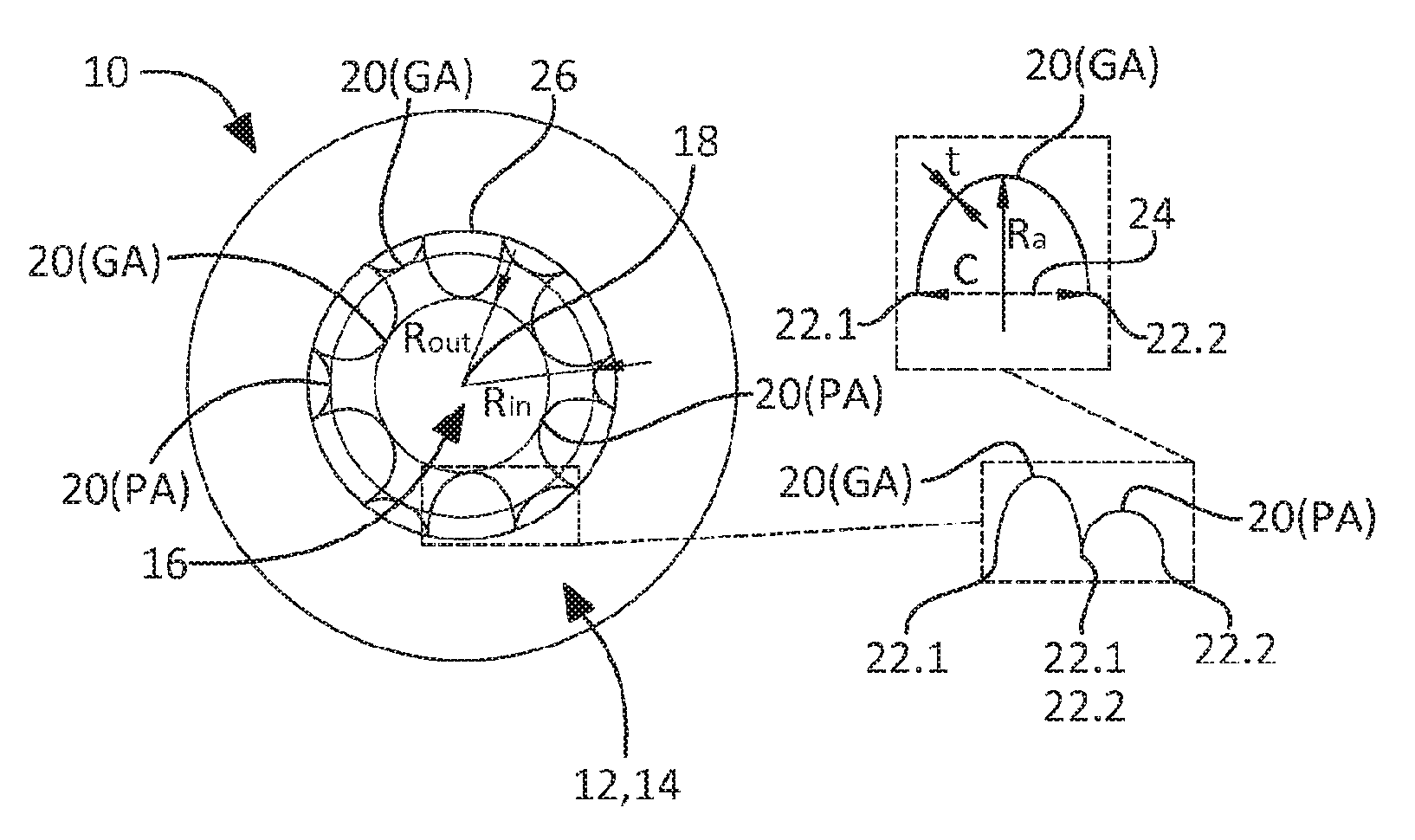

A waveguide with a hollow core (16) delimited by a closed contour includes a succession of arcs (20) of negative curvature, each arc including a chord (24), characterized in that the contour of the hollow core (16) includes small arcs (PA) and large arcs (GA) arranged alternately, each arc (20) being symmetric with respect to a straight line passing through the center (18) of the hollow core (16) and the middle of the chord (24) thereof, the ratio b=2Ra/C of the large arcs being greater than 0.9 for the large arcs (GA), Ra corresponding to the maximum distance between the chord (24) and the arc (20), C corresponding to the length of the chord (24).
