Hand truck with a loading weighing mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Grant Date -
N/A
app pub date -
Dec 15, 2016
filing date -
Dec 15, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

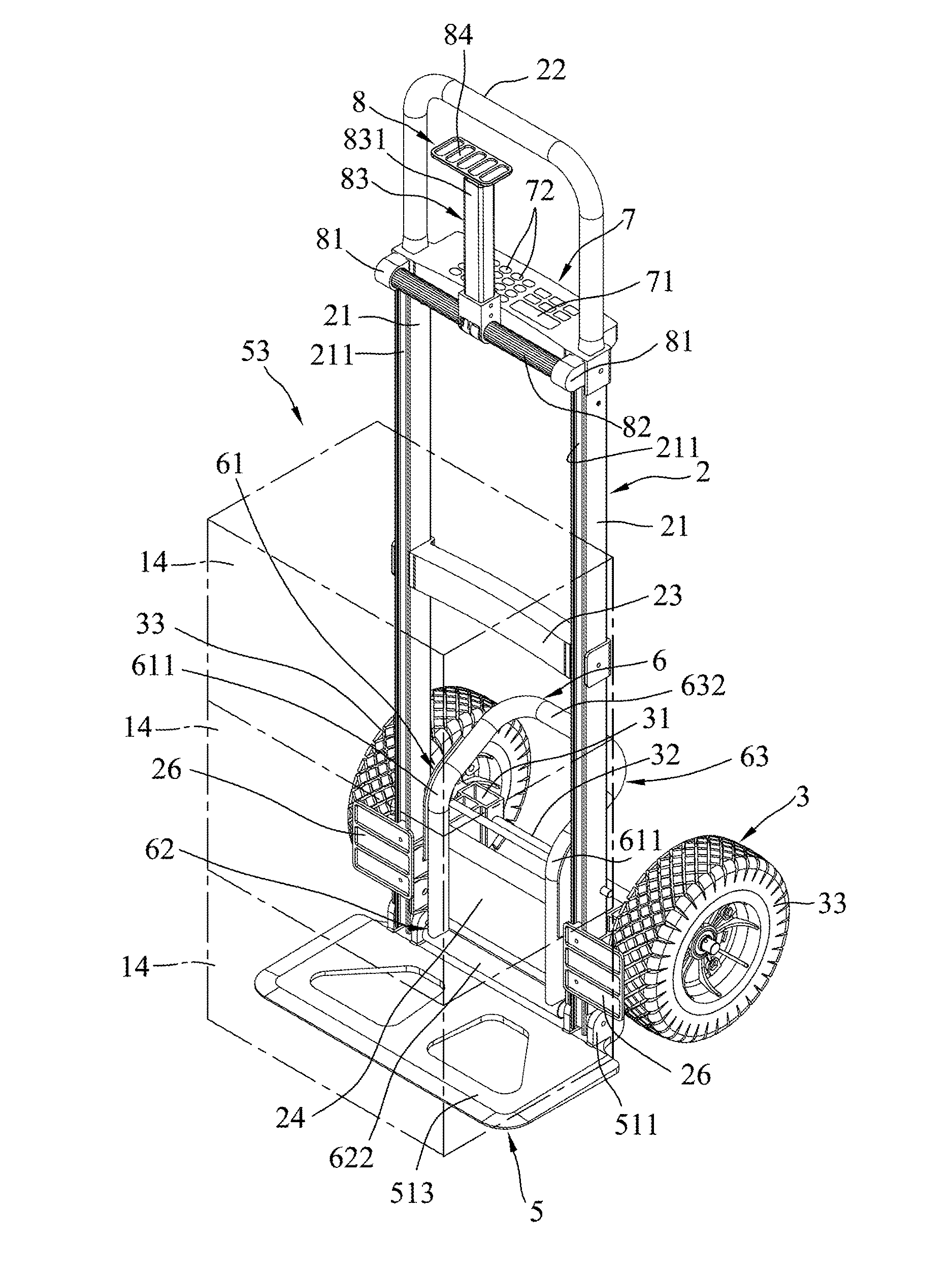

A hand truck includes a truck frame, a toe plate coupled with the truck frame and having a loading surface which is disposed to extend forwardly of and transverse to the truck frame for carrying objects thereon, and a load measuring assembly disposed on the truck frame adjacent to the toe plate and spaced apart from the loading surface to measure weight of the objects set on the loading surface. The load measuring assembly includes a force measuring unit disposed on the truck frame to receive and measure an upward force, and a force transferring unit interconnecting the toe plate and the force measuring unit to transfer the weight of the objects as the upward force to the force measuring unit.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- B62B Class
- 461 Applications Filed
- 364 Patents Issued To-Date
- 78.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B62B Class
- 22.73 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
