Oilfield application of solar energy collection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Mar 3, 2014
filing date -
Jul 5, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

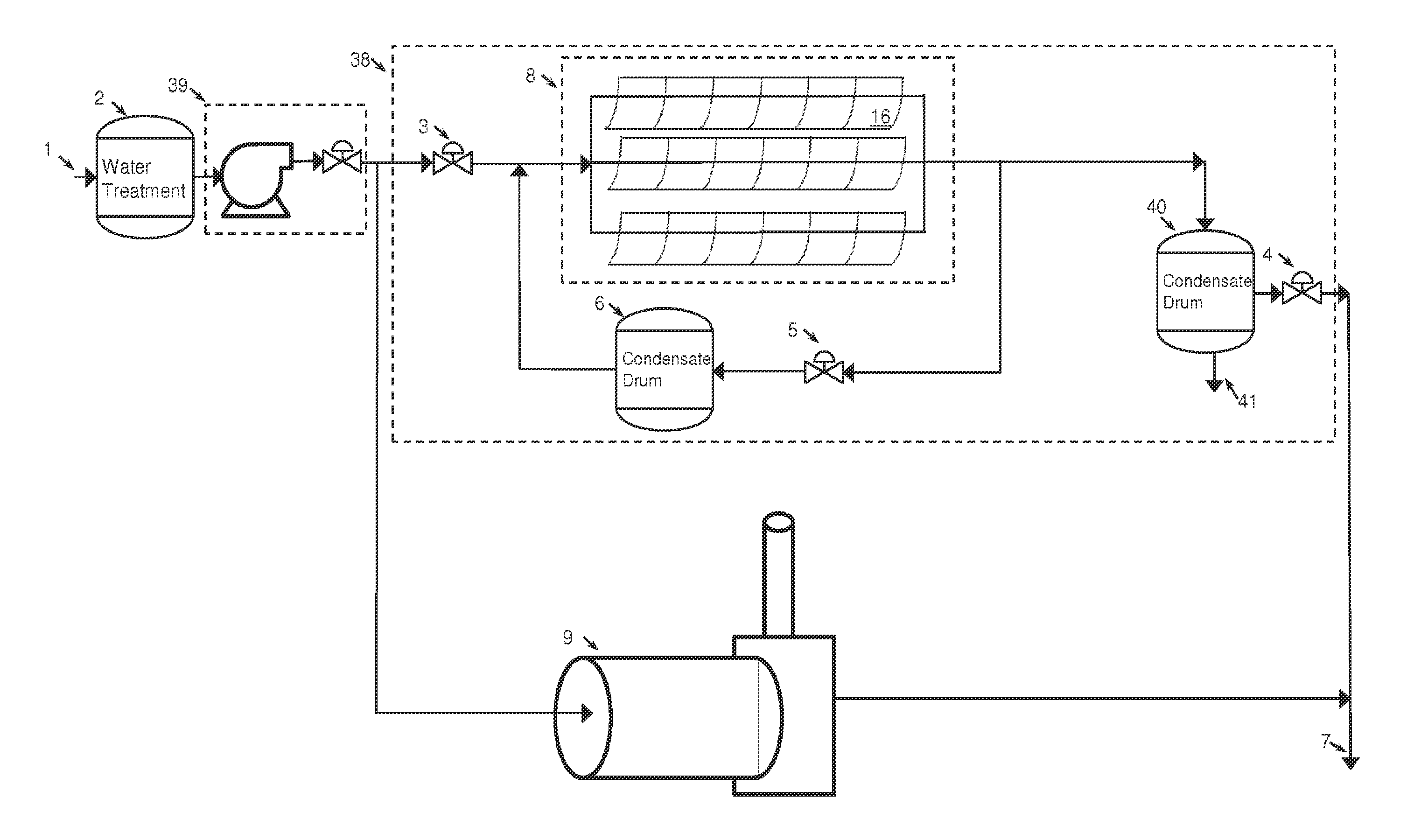

Solar energy is collected and used for various industrial processes, such as oilfield applications, e.g. generating steam that is injected downhole, enabling enhanced oil recovery. Solar energy is indirectly collected using a heat transfer fluid in a solar collector, delivering heat to a heat exchanger that in turn delivers heat into oilfield feedwater, producing hotter water or steam. Solar energy is directly collected by directly generating steam with solar collectors, and then injecting the steam downhole. Solar energy is collected to preheat water that is then fed into fuel-fired steam generators that in turn produce steam for downhole injection. Solar energy is collected to produce electricity via a Rankine cycle turbine generator, and rejected heat warms feedwater for fuel-fired steam generators. Solar energy is collected (directly or indirectly) to deliver heat to a heater-treater, with optional fuel-fired additional heat generation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F24J Class
- 375 Applications Filed
- 280 Patents Issued To-Date
- 74.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F24J Class
- 29.09 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
