Low profile pump with the ability to be mounted in various configurations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Mar 19, 2014
filing date -
Mar 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

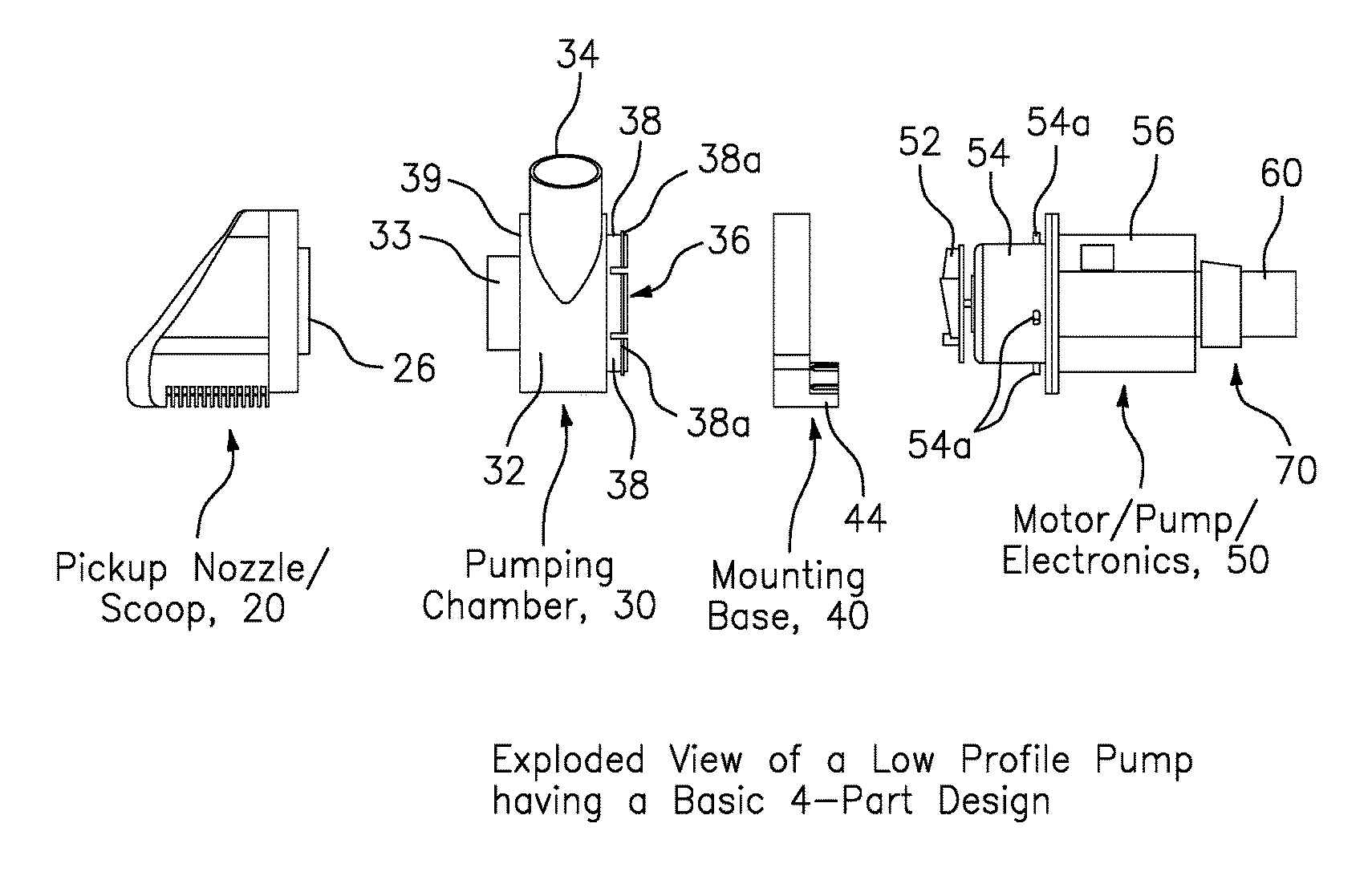

A pumping system featuring a pump chamber configured with a central portion having a tangential outlet, and configured with a tubular coupling end portion having inwardly flexible rim portions on one side; and a mounting base, having a circular portion with an inner circumferential rim configured to receive and engage the inwardly flexible rim portions of the tubular coupling portion of the pump chamber so as to be rotationally coupled to the pumping chamber so that the pumping chamber may be rotated 360° in relation to the mounting base.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- F04D Class
- 1416 Applications Filed
- 1174 Patents Issued To-Date
- 82.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 15 Citation Count
- F04D Class
- 92.42 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
