Securing covers over foam cushions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2017
Issued Date -
N/A
app pub date -
Mar 10, 2014
filing date -
Mar 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

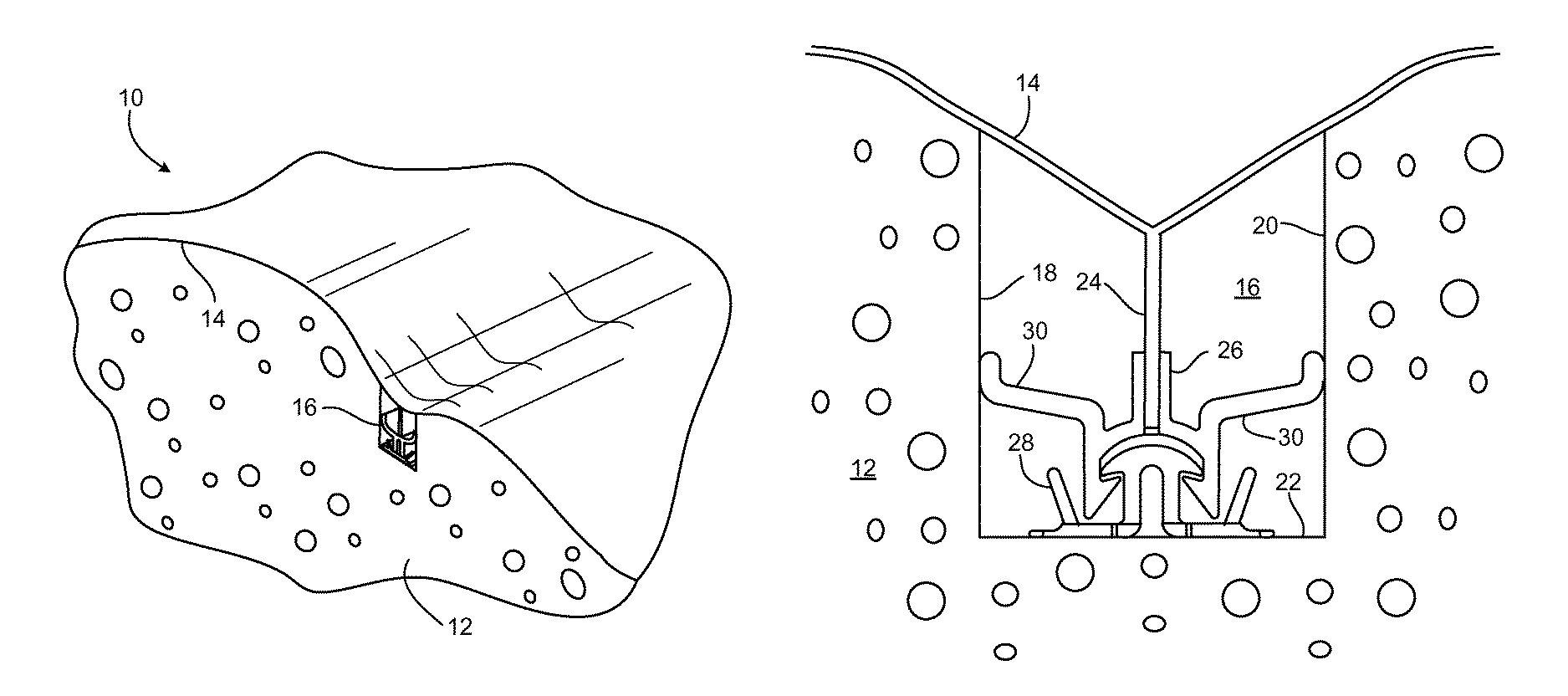

A covered foam cushion (10), such as for an automotive seat, has a foam bun (12) with a contoured outer surface defining an elongated trench (16) between opposing side walls (18, 20). A retainer (28, 28a) is permanently secured to the foam bun and recessed within the trench between the side walls. A cover (14) extends over at least a portion of the foam bun and is held in place by a clip (26, 26a) permanently secured to a distal edge of a flange (24) of the cover within the trench of the foam bun. The clip is fastened to the retainer and has lateral protrusions (30, 30a) that bear against the opposing side walls of the trench.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B29C Class
- 4829 Applications Filed
- 3911 Patents Issued To-Date
- 80.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B29C Class
- 34.18 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2029 |
